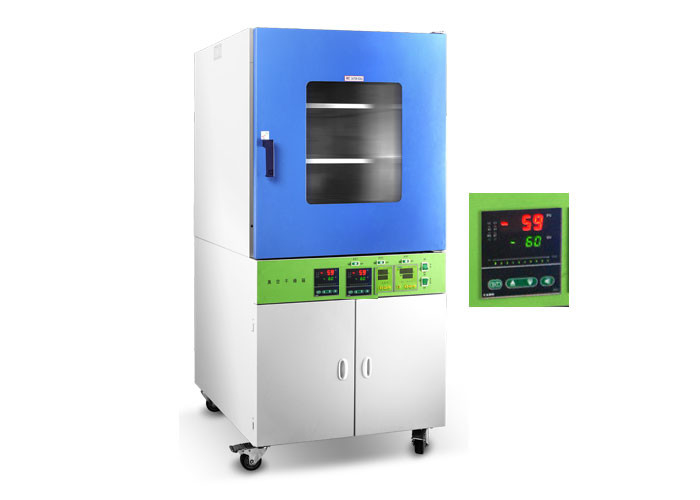

Lab Pharmaceutical Drying Oven , Vacuum Drying Chamber 1.6KW High Strength

Lab Pharmaceutical Drying Oven , Vacuum Drying Chamber 1.6KW High Strength

  • Lab Pharmaceutical Drying Oven , Vacuum Drying Chamber 1.6KW High Strength
Lab Pharmaceutical Drying Oven , Vacuum Drying Chamber 1.6KW High Strength
Product Details:
Place of Origin: China
Brand Name: LONGYUE
Certification: ISO9001, CE
Model Number: LVO-6090 LC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden case
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 100 set / month
Contact Now
Detailed Product Description
Model: LVO-6090 LC Power Supply: AC 220V, 50Hz
Power Rating(KW): 1.6 Temperature Range(℃): RT+10~200
Temperature Fluctuation: ±1℃ Display Resolution: 0.1℃
Vacuum Degree: <133 Pa Chamber Size (W×D×H)cm: 45×45×45
Exterior Size (W×D×H)cm: 61×66×145
High Light:

vacuum drying chamber


pharmaceutical drying oven

Lab Pharmaceutical Vacuum Degree Controller Vertical Vacuum Drying Oven LVO-6050LC


Many samples are very sensitive and tend to be damaged by the drying process. The drying process in the vacuum drying chamber reduces this risk to a minimum. The aim of this method is to gently dry a high-grade product that contains water or a solvent without altering its properties in the process. When drying under a vacuum, the pressure in the drying chamber is reduced so that water or solvents evaporate even at low temperatures. This process also promotes capillary transport. The targeted supply of heat and pressure control optimize the drying process. The method is primarily used with heat-sensitive products such as food and some chemicals.



★ Microprocessor controller with LCD display, more accurate and reliable.

★ Polished stainless steel chamber,durable and easy to clean.

★ Tempered, bullet-proof double glass door ensure the safety of operator and clear observation of the chamber.

★ Door tightness can be adjusted,silicon sealing. To keep vacuum states in the chamber, can fill working chamber with inert gas (inflation pressure≦ 0.1 MPa).

★ Storage, heating, testing and drying can be performed in the environment without oxygen or in an inert atmosphere. It will not cause oxidation.

★ Vacuum degree is full-automatic controlled by microcomputer

★ Equipped with leakage protection.



1. Multi-segment programmable control

2. Built-in printer

3. RS485 interface

4. Inert gas inlet valve



Model LVO-6050LC LVO-6090 LC LVO-6210 LC
Power Supply AC 220V, 50Hz
Power Rating(KW) 1.4 1.6 2.2
Temperature Range(℃) RT+10~250 RT+10~200
Temperature Fluctuation ±1℃
Display Resolution



Vacuum Degree <133 Pa
Chamber Size (W×D×H)cm 42×35×37 45×45×45



Exterior Size


53×56×137 61×66×145



Package Size (W×D×H)cm 70×66×155 78×76×163 89×92×193
Net/Gross(kg) 75/106 90/145 145/195
