Drying Oven LDO-101-3 high accuracy PID control

Drying Oven LDO-101-3 high accuracy PID control

  • Drying Oven LDO-101-3 high accuracy  PID control
Drying Oven LDO-101-3 high accuracy  PID control
Product Details:
Place of Origin: China
Brand Name: LONGYUE
Certification: ISO9001, CE
Model Number: LDO-101-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden case
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 100 set / month
Contact Now
Detailed Product Description
Volume (L): 250 Chamber Size (W×D×H) Cm: 60×60×70
Exterior Size(W×D×H) Cm: 88×73×95 Package Size (W×D×H) Cm: 105×86×112
Power Rating(W): 3500 Temp. Range(℃): RT+10~300
Shelf: 2 Chamber: Stainless Steel

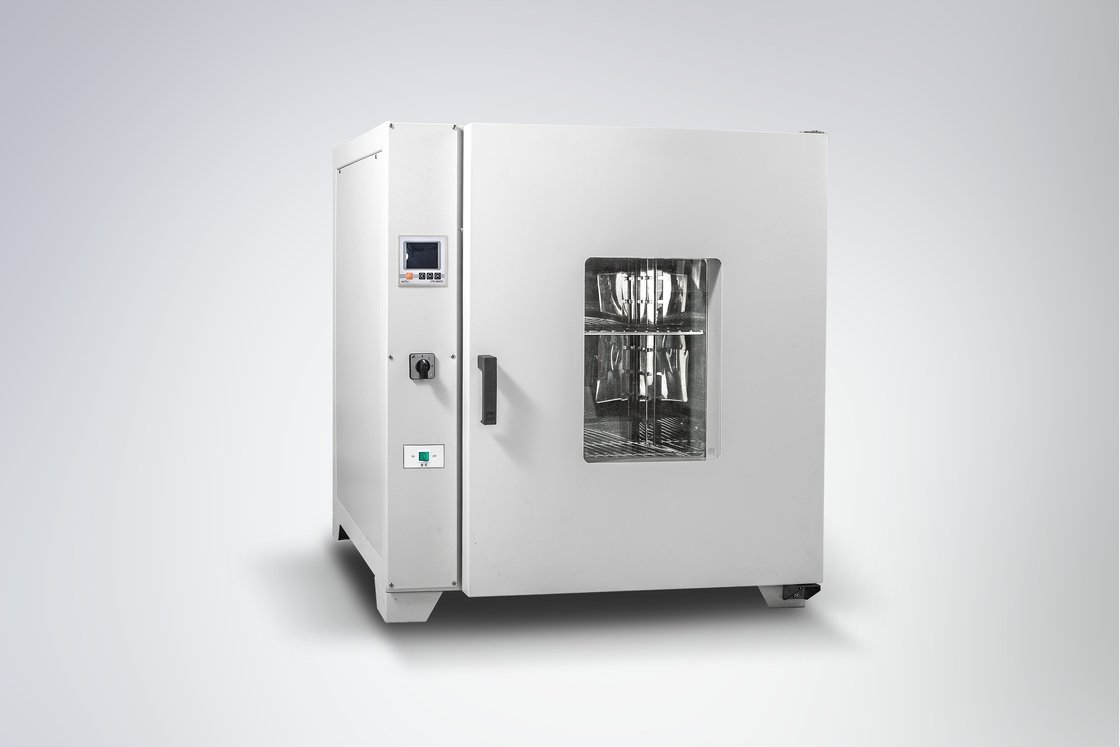

High Quality Laboratory  Drying Oven LDO-101-3


Constant temperature drying oven is a thermostatic drying oven, which is widely used in biochemistry, chemical pharmaceutical, medical and health, agricultural scientific research and environment protection etc research and application fields, for powder drying, baking, the disinfection & sterilization of all kinds glass containers.



★High quality stainless steel chamber,safe and easy-to-clean.

★ Microprocessor controller with LCD display, accurate and reliable.

★ Equipped with multiple sets of heaters.

★ Equipped with leakage protection.

★ Equipped with spare temperature control which ensures the product work normally even the main temp.control failed.

★ Adopt temperature selection switch which can select the grade according to the heating speed and operating temperature.

★ Convenient operation for air inlet,reasonable air duct structure,good temperature uniformity.

★ With inner glass door for easy observation.

★ Anti-hot handle

Technical Parameters:

1.Temp. Range:RT+10℃-300℃

2.Temp. Fluctuation:±1℃.


4.Temp. Uniformity:≦Max. Temp.±3.5℃%.

5.Power Supply:220V,50HZ



1. Multi-segment programmable control

2. Built-in Printer

3. RS485 interface




Package Size


Exterior Size


Chamber Size (L×W×H) cm

Power Rating




Net/Gross (kg)

LDO-300 75×63×77 64×50×60 35×35×35 1300 2 35 / 55
LDO-400 85×66×86 73×53×69 45×40×45 2000 2

50 / 80


LDO-500 90×76×98 78×69×80 50×50×55 2500 2

75 / 110


LDO-600 100×86×110 88×73×95 60×60×70 3500 2

110 / 150
