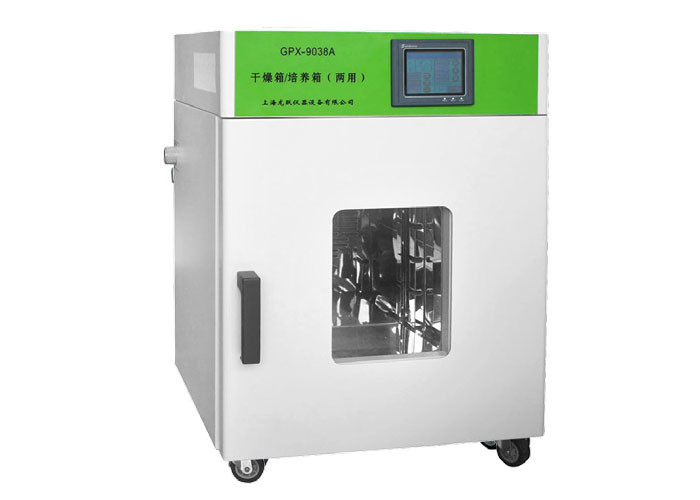

High Performance Hot Air Lab Drying Oven With Large LCD Screen Display

High Performance Hot Air Lab Drying Oven With Large LCD Screen Display

  • High Performance Hot Air Lab Drying Oven With Large LCD Screen Display
High Performance Hot Air Lab Drying Oven With Large LCD Screen Display
Product Details:
Place of Origin: China
Brand Name: LONGYUE
Certification: ISO9001, CE
Model Number: LDO-9203A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden case
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 100 set / month
Contact Now
Detailed Product Description
Volume (L): 25 Chamber Size (W×D×H) Cm: 30×30×28
Exterior Size(W×D×H) Cm: 58×50×45 Package Size (W×D×H) Cm: 70×60×60
Power Rating(W): 320 Temp. Range(℃): RT+10~200
High Light:

constant temperature drying oven

,

forced air drying oven

Hot Air Drying Oven Laboratory Drying Oven Industrial Drying Oven



Features
★ Horizontal and vertical forced air type,good temperature uniformity.

★ Microprocessor controller(with temperature correction and timing function), accurate and reliable.

★ Large LCD screen display.

★ High quality stainless steel chamber, removable shelf, easy-to-clean.

★ Equipped with multiple sets of heaters.(For LDO-101 Series)

★ Adopt temperature selection switch which can select the grade according to the heating speed and operating temperature.(For LDO-101 Series)
★ Silicon sealing ring for reliable sealing.
★ Equipped with leakage protection.
★ Equipped with spare temperature control which ensures the product work normally even the main temp.control failed.★ Optional printer or RS485 interface which can print or connect computer for remote control and alarm.

★ Anti-hot handle


Technical Parameters:

1. Temp. Fluctuation:±1℃.

2. Temp. Uniformity:±2.5℃%.
3. Temp.Resolution:0.1℃
4. Timer:1~9999m



Options:

1. Multi-segment programmable control

2. Built-in Printer

3. RS485 interface



Specification:

Model

Volume

(L)

Chamber Size (W×D×H) cm Exterior Size(W×D×H) cm Package Size (W×D×H) cm Power Rating(W)

Temp.

Range(℃)

Shelf

Net/

Gross

(kg)

Power Supply



Shape

LDO-101-0 43 35×35×35 64×50×60 75×63×77 1300 RT+10~300 2 40/60 AC 220V 50HZ Horizontal
LDO-101-1 81 45×40×45 73×53×69 85×66×86 2000 2 55/85
LDO-101-2 138 50×50×55 78×69×80 90×76×98 2500 2 80/115
LDO-101-3 252 60×60×70 88×73×95 100×86×110 3500 2 110/150
LDO-101-4 640 80×80×100 108×93×125 120×108×143 5500 3 170/250

AC 380V

50HZ

LDO-101-5 960 100×80×120 128×98×145 142×108×165 7000 3 250/340
LDO-9023A 25 30×30×28 58×50×45 70×60×60 320 RT+10~200 2 29/36 AC 220V 50HZ Horizontal
LDO-9053A 54 42×37×35 71×56×42 82×66×69 600 2 35/43
LDO-9123A 138 50×50×55 83×61×72 95×76×98 1200 2 45/55
LDO-9203A 252 60×60×70 88×78×82 98×78×95 1600 2 60/69
LDO-9030A 31.5 30×30×35 45×47×70 53×53×77 700 RT+10~200 2 29/37 AC 220V 50HZ Vertical
LDO-9070A 72 40×40×45 55×60×80 59×61×84 1000 2 45/52
LDO-9140A 136 45×55×55 64×73×90 65×76×94 1600 2 45/56
LDO-9240A 225 50×60×75 88×72×93 83×86×123 2000 2 62/70
LDO-9420A 429 60×55×130 78×71×170 93×81×178 2600 3 130/153 AC 380V 50HZ
LDO-9620A 624 80×60×130 98×80×178 113×86×188 3600 3 168/186
LDO-9036A 31.5 30×30×35 45×47×70 53×53×77 950 RT+10~300 2 29/37 AC 220V 50HZ
LDO-9076A 72 40×40×45 55×60×80 59×61×84 1400 2 40/50
LDO-9146A 136 45×55×55 64×73×90 65×76×94 2000 2 45/56
LDO-9246A 225 50×60×75 69×77×114 83×86×123 2600 2 62/70
LDO-9426A 429 60×55×130 78×71×170 93×81×178 3500 3 130/153

AC380V

50HZ

LDO-9626A 624 80×60×130 103×80×178 113×86×188 5700 3 168/186
