| Place of Origin: | China |
| Brand Name: | LONGYUE |
| Certification: | ISO9001, CE |
| Model Number: | LVO-6933 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 100 set / month |
| Model: | LVO-6933 | Power Supply: | AC 220V, 50Hz |
|---|---|---|---|
| Power Rating（KW）: | 5.5KW | Temperature Range（℃）: | RT+10～200 |
| Temperature Fluctuation: | ±1℃ | Display Resolution: | 0.1℃ |
| Vacuum Degree: | <133 Pa | Chamber Size (W×D×H)cm: | 75.5×116×115 |
| Exterior Size (W×D×H)cm: | 72×82×175 | ||
| Highlight: | vacuum drying cabinet,pharmaceutical drying oven |
||

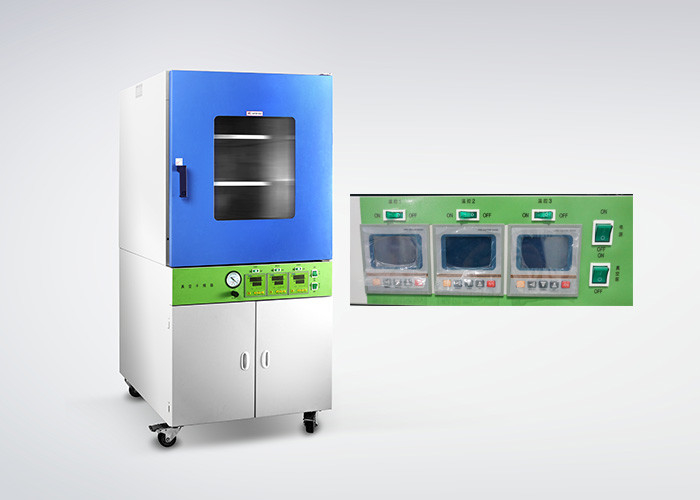

Heating High Temperature Vacuum Circulating Drying Oven LVO-6933
Vacuum Oven / Vacuum Drying Ovens. ... A vacuum drying oven is most often used for delicate drying processes, such as drying tiny parts or removing flammable solvents. The low pressure environment also minimizes oxidation during drying. A standard vacuum oven can operate at temperatures as high as 200C to 250C.
Features
★ Microprocessor controller with LCD display, more accurate and reliable.
★ Polished stainless steel chamber,durable and easy to clean.
★ Tempered, bullet-proof double glass door ensure the safety of operator and clear observation of the chamber.
★ Door tightness can be adjusted,silicon sealing. To keep vacuum states in the chamber, can fill working chamber with inert gas (inflation pressure≦ 0.1 MPa).
★ Storage, heating, testing and drying can be performed in the environment without oxygen or in an inert atmosphere. It will not cause oxidation.
★ Vacuum degree is full-automatic controlled by microcomputer
★ Equipped with leakage protection.
Options:
1. Multi-segment programmable control
2. Built-in printer
3. RS485 interface
4. Inert gas inlet valve
Specifications:
| Model | LVO-6050LC | LVO-6090 LC | LVO-6210 LC |
| Power Supply | AC 220V, 50Hz | ||
| Power Rating(KW) | 1.4 | 1.6 | 2.2 |
| Temperature Range(℃) | RT+10～250 | RT+10～200 | |
| Temperature Fluctuation | ±1℃ | ||
| Display Resolution |
0.1℃
|
||
| Vacuum Degree | <133 Pa | ||
| Chamber Size (W×D×H)cm | 42×35×37 | 45×45×45 |
56×60×64
|
|
Exterior Size (W×D×H)cm |
53×56×137 | 61×66×145 |
72×82×175
|
| Package Size (W×D×H)cm | 70×66×155 | 78×76×163 | 89×92×193 |
| Net/Gross(kg) | 75/106 | 90/145 | 145/195 |
