| Place of Origin: | China |
| Brand Name: | LONGYUE |
| Certification: | ISO CE |
| Model Number: | VS-1300L-U |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden carton |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |
| Cleanliness: | ISO CLASS 5 | Air Velocity: | ≥0.3 M/s (59.1fpm) (adjustable) |
|---|---|---|---|
| Noise: | ≤62 DB(A) | Illumination: | ≥300 Lx |
| Consumption: | 500w | Work Dimension (W1XD1XH1): | 1140 X 650 X 720 Mm |
| Overall Dimension (WXDXH): | 1300 X 825 X 1775 Mm | Size & No. Of HEPA Filter: | 610 X 610 X 50 X 2 Sets |
| Light: | 30 W X 1 Pc | UV Light (optional): | 30 W X 1 Pc |
| No.of Colony: | ≤0.5cfu/dish*0.5h | ||
| High Light: | 500w Laminar Air Flow Cabinet,Pre Filters Laminar Airflow Cabinet,Streamline Laminar Air Flow Cabinet |
||

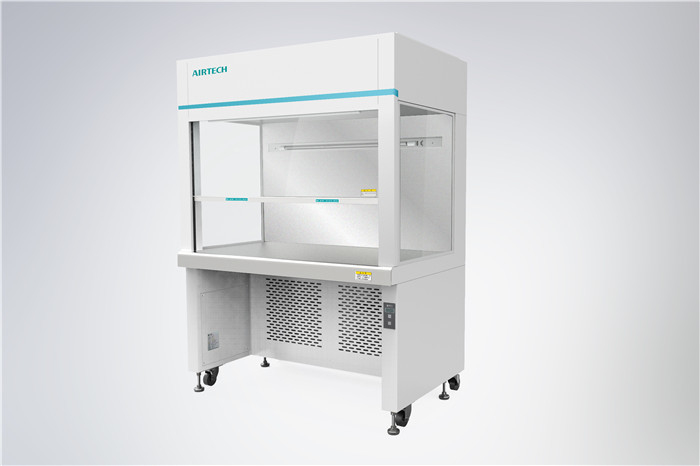

VS-840K(U)/1300L(U) Laminar Flow Workbench Clean Bench
Description
◆ Digital display interface, soft touch key operation, air velocity 3 level adjust, and display the status of the fan, lighting and UV.
◆ Set the UV lamp reservation on and off, display fan, UV lamp, filter cumulative running time.
◆ Built-in tempered glass on both sides for easy observing.
◆ Front window adopts hanging lifting system.(Patent No.:ZL97235425.5)
◆ Streamline shape decrease interference of airflow.
◆ High grade steel with static powder coating, well corrosion resistant ability, inhibiting bacterial growth effectively.
◆ Streamline shape decrease interference of airflow.
◆ High quality swivel caster easy to move and fixation.
◆ Humanized pre-filters design make customers more convenient to change and clean.
◆ Interlocking lighting and sterilization systems, with spare sockets design, short circuit protection, safe and convenient to use.
◆ Every clean bench is tested individually in according with international standard at factory for safety and performance.
| Model/Item | VS-840K | VS-1300L | VS-840K-U | VS-1300L-U |
| Cleanliness | ISO CLASS 5 | |||
| Air Velocity | ≥0.3 m/s (59.1fpm) (adjustable) | |||
| Noise | ≤62 dB(A) | |||
| Illumination | ≥300 Lx | |||
| Power Supply | AC220V, 1φ, 50Hz | |||
| Consumption※ | 250 w | 500 w | 250 w | 500 w |
| Weight | 145 kg | 200 kg | 145 kg | 200 kg |
|
Work Dimension (W1XD1XH1)
|
680 x 650 x 570 mm (26.8'' x 25.6'' x 22.4'') |
1140 x 650 x 720 mm (44.9'' x 25.6'' x 28.3'') |
680 x 650 x 570 mm (26.8'' x 25.6'' x 22.4'') |
1140 x 650 x 720 mm (44.9'' x 25.6'' x 28.3'') |
|
Overall Dimension (WXDXH)
|
840 x 825 x 1625 mm (33.1'' x 32.5'' x 64.0'') |
1300 x 825 x 1775 mm (51.2'' x 32.5'' x 69.9'') |
840 x 825 x 1625 mm (33.1'' x 32.5'' x 64.0'') |
1300 x 825 x 1775 mm (51.2'' x 32.5'' x 69.9'') |
|
Size & No.of HEPA Filter
|
760 x 610 x 50 x 1 set (29.9'' x 24.0'' x 2.0'' x 1 set) |
610 x 610 x 50 x 2 sets (24.0'' x 24.0'' x 2.0'' x 2 sets) |
760 x 610 x 50 x 1 set (29.9'' x 24.0'' x 2.0'' x 1 set) |
610 x 610 x 50 x 2 sets (24.0'' x 24.0'' x 2.0'' x 2 sets) |
| Light | 18 w x 1 pc | 30 w x 1 pc | 18 w x 1 pc | 30 w x 1 pc |
| UV Light (optional) | - | 18 w x 1 pc | 30 w x 1 pc | |
| No.of Conoly | - | ≤0.5cfu/dish*0.5h | ||
| Materials | Working table: All-in-one Stainless Steel, Outside cabinet: high grade steel and lacquered in ivory. | |||
| Mode of Operation | single/single side | double/single side | single/single side | double/single side |
