| Cleanliness: | ISO CLASS 5 | Air Velocity: | 0.28~0.36 M/s (55.1~70.9fpm) (adjustable) |
|---|---|---|---|
| Noise: | ≤65 DB(A) | Illumination: | ≥650 Lx |
| Consumption: | 600 W | Work Dimension (W1XD1XH1): | 1300 X 560 X 720 Mm |
| Overall Dimension (WXDXH): | 1380 X 785 X 1820 Mm | Size & No. Of HEPA Filter: | 645 X 680 X 69 Mm X2 Sets |
| Light: | LED 24.5w X1 Pc | UV Light: | 30w X1 Pc |
| High Light: | 600w Exclusive Clean Bench,Class 5 Exclusive Clean Bench,SS304 Clean Bench |
||

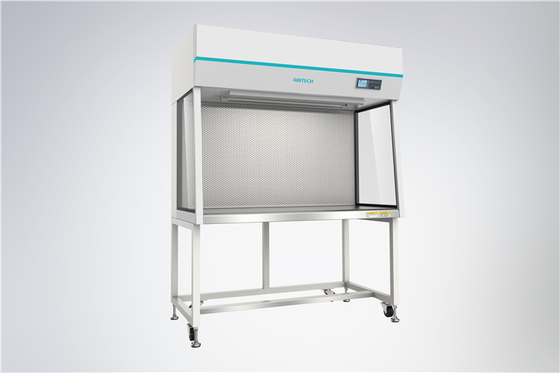

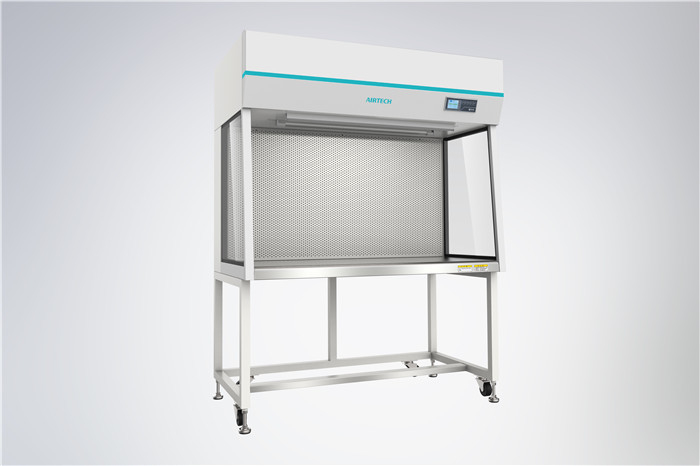

HHS-1000/1300/1600/1800(-U) Exclusive Clean Bench Stainless Steel Working Table
Description:
1.Friendly Control Panel
◆ Color HD LED display, soft button control.
◆ Showing time, air velocity, temperature and HEPA filter life on screen in real time.
◆ Operator can make an appointment for fan and UV light.
2.Humanized design
◆ 5°sloped front, nice shape, relieving the sense of repression.
◆ Double layer side window, wide vision, convenient to observe.
◆ Integrative stainless steel working table design, easy to clean.
◆ Circular-Arc armrest, reducing fatigue.
◆ Detached Support, easy to assemble and carry.
3.Safe and Reliable, Energy-Efficient
◆ It will test by itself when turning on.
◆ ECO mode can reduce energy consumption.
◆ Alarm system for fan , temperature,HEPA filter life.
◆ Light, UV light and front window are interlocked.
◆ The clean air cover all the working area.
◆ The anti UV glass is safe and reliable.
◆ The velocity of air flow is uniform(Patent: 201020511001.X), ensuring air flow pattern reliable.
| Model/Item | HHS-1000 | HHS-1300 | HHS-1600 | HHS-1800 |
| Cleanliness | ISO CLASS 5 | |||
| Air Velocity | 0.28~0.36 m/s (55.1~70.9fpm) (adjustable) | |||
| Noise | ≤65 dB(A) | |||
| Illumination | ≥650 Lx | |||
| Power supply | AC220V, 1φ, 50Hz | |||
| Consumption ※ | 300 w | 600 w | 600 w | 600 w |
| Weight | 140 kg | 175 kg | 200 kg | 210 kg |
|
Work Dimension (W1XD1XH1)
|
1000 x 560 x 720 mm (39.4'' x 22.0'' x 28.3'') |
1300 x 560 x 720 mm (51.2'' x 22.0'' x 28.3'') |
1600 x 560 x 720 mm (63.0' x 22.0' 'x 28.3'') |
1800 x 560 x 720 mm (70.9'' x 22.0'' x 28.3'') |
|
Overall Dimension (WXDXH)
|
1080 x 785 x 1820 mm (42.5'' x 30.9'' x 71.7'') |
1380 x 785 x 1820 mm (54.3'' x 30.9'' x 71.7'') |
1680 x 785 x 1820 mm (66.1'' x 30.9'' x 71.7'') |
1880 x 785 x 1820 mm (74.0'' x 30.9'' x 71.7'') |
|
Size & No. of HEPA Filter
|
990 x 680 x 69 mm x1 set (39.0'' x 26.8'' x 2.7'' x1 set) |
645 x 680 x 69 mm x2 sets (25.4'' x 26.8'' x 2.7'' x2 sets) |
795 x 680 x 69 mm x2 sets (31.3'' x 26.8'' x 2.7'' x2 sets) |
895 x 680 x 69 mm x2 sets (35.2'' x 26.8'' x 2.7'' x2 sets) |
| Light | LED 15w x1 pc | LED 24.5w x1 pc | LED 31w x1 pc | LED 36w x1 pc |
| UV light (optional) | 18w x1 pc | 30w x1 pc | 36w x1 pc | 36w x1 pc |
| Materials | Working table: All-in-one Stainless Steel, Outside cabinet: high grade steel and lacquered in ivory | |||
| Optional: working area all SS304 | ||||
| Mode of Operation | single people/single side | double people/single side | ||
