| Place of Origin: | China |
| Brand Name: | LONGYUE |
| Certification: | CE ISO |
| Model Number: | XD-52CS |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Carton |
| Delivery Time: | 7 workding days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500sets/month |
| Lift: | Manual Sliding Lifting With Length Of 150mm | Rotating Speed: | 0-150rpm/min |
|---|---|---|---|
| Rotation Control: | Rotary Stepless Control | Evap. Capacity: | / |
| Temp. Range/precision: | Auto Control; Digital Display; Water Bath：RT.-99℃±1℃ | Bath Material: | Integral Teflon Bath |
| Bath Size: | Φ22*11.5cm | Vacuum: | NO |
| Flask Volume: | 0.25-2L | Condenser: | Cold Trap |
| Condense Area: | / | Feeder: | Valve Type Feeding Pipe Equipped With Tetrafluoroethylene Pipe And Water Retaining Ring |
| Sealing: | Imported PTFE And Special Complex Compounded With Special Technique, Which Ensures Good Sealing And Improves The Anti-corrosion And Durability Property. | ||

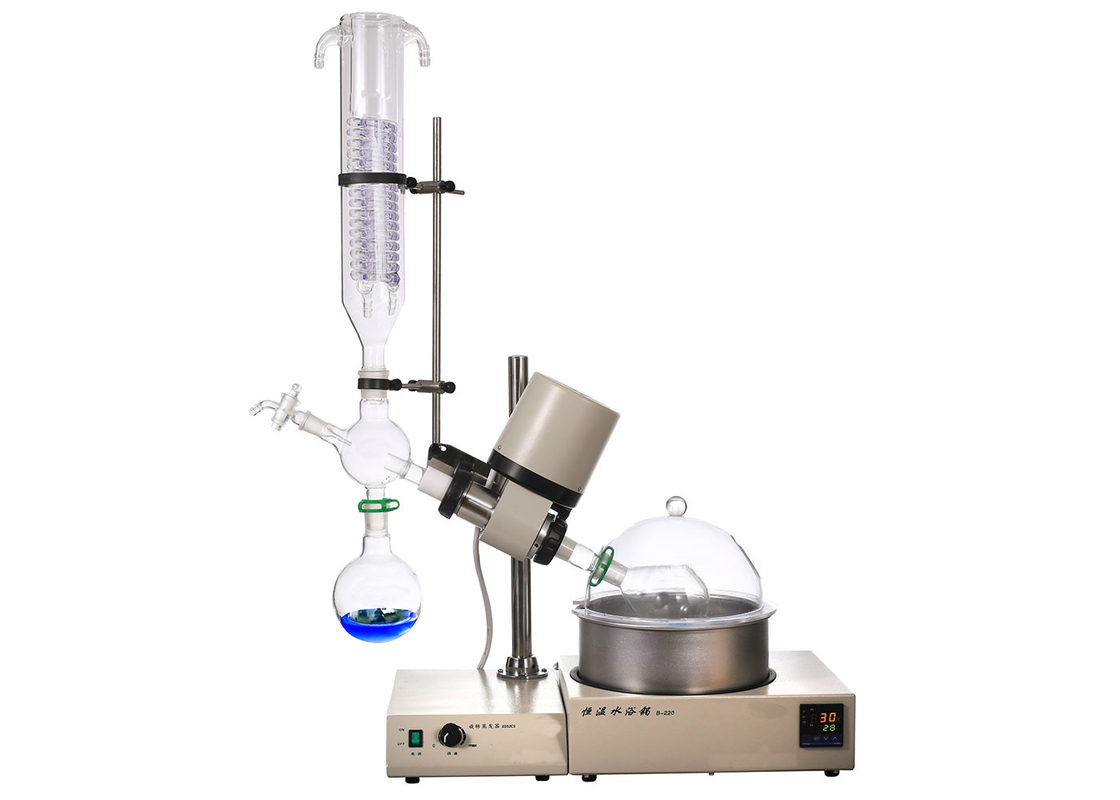

| High Light: | Rust Proof Rotary Evaporator,Integral Teflon Bath Rotary Evaporator,150rpm/Min Rotary Vacuum Evaporator |
||
| Model | XD-52CS | XD-52CS-1 | XD-5203 | XD-5205 |
| Lift | Manual sliding lifting with length of 150mm | Rotary lifting with lifting length of 150mm | Strut-press lifting with length of 150mm | Button-press lifting with length 150mm |
| Rotating Speed | 0-150rpm/min | 0-130rpm/min; | ||
| Rotation control | Rotary stepless control | stepless control; digital display | ||
| Evap. Capacity | / | Max.0.18L/min (H2O) | Max.0.21L/min (H2O) | Max.0.38L/min (H2O) |
| Temp. range/precision | Auto control; digital display; Water Bath:RT.-99℃±1℃ | |||
| Bath Material | Integral Teflon bath | stainless steel heating bath with outer heater | Integral Teflon bath | |
| Bath Size | Φ22*11.5cm | Φ24.5*15cm | Φ26*15cm | Φ29*17cm |
| Vacuum | NO | NO | NO | Vacuum gauge and valves to control |
| Heater Power | 1KW | 2KW | ||
| Flask Volume | 0.25-2L | 0.25-3L | 0.25-5L | |
| Environment Temp. | 5-40℃ | |||
| Condenser | Cold trap | Vertical Dual-reflux coil condenser | ||
| Condense area | / | 0.15㎡ | 0.31㎡ | |
| Feeder | Valve type feeding pipe equipped with tetrafluoroethylene pipe and water retaining ring | |||
| Sealing | Imported PTFE and special complex compounded with special technique, which ensures good sealing and improves the anti-corrosion and durability property. | |||
| Factory Configuration |
24# eggplant Rotating Flask 500ml*1 Ball mill mouth Receiving Flask:250ml*1 |
24# standard mouth Rotating Flask 1L*1 Receiving Flask:500ml*1 |
24# standard mouth Rotating Flask 3L*1 Receiving Flask:2L*1 |
29# eggplant flask 1L*1 F50 Flange mouth round bottom flask 5L*1 S35 ball mill mouth flask 3L*1 |
| Input | AC220V/50HZ | |||
|
Size&Weight |
Pack size: 49*37*58cm; G/W 20KG |
Pack size: 69*46*42cm+43*37*32cm; G/W 23+6KG |
Pack size: 77*51*47cm+43*37*32cm; G/W 25+6KG |
Pack size: 65*50*71cm+54*47*39cm; G/W 42+4KG |
