PTFE Diaphragm 20L/Min 3000RM Touch Screen Vacuum Pump

PTFE Diaphragm 20L/Min 3000RM Touch Screen Vacuum Pump

  • PTFE Diaphragm 20L/Min 3000RM Touch Screen Vacuum Pump
PTFE Diaphragm 20L/Min 3000RM Touch Screen Vacuum Pump
Product Details:
Place of Origin: China
Brand Name: LONGYUE
Certification: CE ISO
Model Number: GMVC-3000RM
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Carton
Delivery Time: 7 workding days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500sets/month
Contact Now
Detailed Product Description
Host Display: 5.5inch LCD Color Touch Screen With Indipendent Intelligent Vacuum Control System. Vacuum Adjust Range: 0~760mmHg(Toor),0~1013hPa(mbar)0~101.3kPa,0~-0.01Mpa
Vacuum Detect Range: 1~800mmHg(Toor),1~1066hPa(mbar)0~106.6kPa,0~-0.01Mpa Max. Vacuum Degree: 6mbar
Application: Strong Acid, Alkali Containing Gas Diaphragm Material: PTFE
Size And Weight: 330×310×460mm 15KG Max. Extraction: 20L/MIN
High Light:

3000RM Vacuum Pump


PTFE Diaphragm Vacuum Pump


20L/Min Vacuum Pump

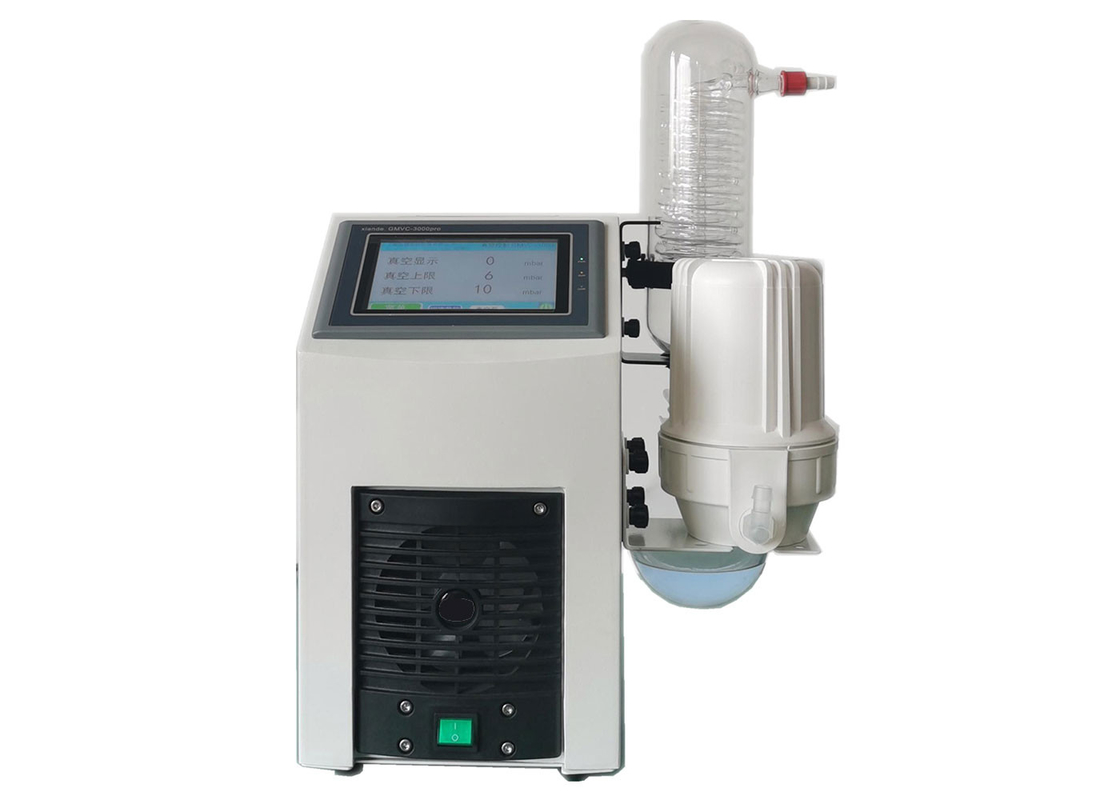

GMVC-3000RM Touch Screen Vacuum Pump With Controller And Solvent Recovery
  • Host:integral vacuum control system with high control precision, anti-corrosion and long service life.
  • Big color LCD touch screen displaying the detected vacuum degree and set vacuum degree.Vacuum degree can be adjusted easily on the LCD screen.
  • Can be connected with vacuum pumpand use with rotary evaporator,to achieve precise control of the vacuum degree of rotary evaporator. So the collection rate of low boiling point materials(such as methylene dichloro, benzene, trichloroethane and ethanol) can be increased. Inert gas can be injected to avoid inner material from pollution and oxidation.
  • The process control of 5 stages gradient distillation (with time and vacuum set at certainj figures) can be carried out during the vacuum distillation of synthetic experimental chromatography,with vacuum degree controlled step by step.
  • Menu operation: English and Chinese operation menu can be switched easily.
  • Operation vacuum degree and operation pressure can be switched easily.
  • Vacuum degree change can be checked in graphic form, which is vivid.
  • USB interface can be used for data output.
  • The vacuum pump with controller and solvent recovery consisits of a vacuum controller, a diaphragm pump,

A coil condenser, a S35 receiving flask500ml and a waste absorption equipment. Apart from vacuum control, it also improves the collection rate, reduced environment pollution. The self circulating purification system also prevent waste leakage from going into disphragm and cause breakage.


Technical Parameter:
Model # Xiande.GMVC-3000RM
Host display 5.5inch LCD color touch screen with indipendent intelligent vacuum control system.
Vacuum adjust range 0~760mmHg(Toor),0~1013hPa(mbar)0~101.3kPa,0~-0.01Mpa
Vacuum detect range 1~800mmHg(Toor),1~1066hPa(mbar)0~106.6kPa,0~-0.01Mpa
Max. Vacuum degree 6mbar
voltage AC 220V
frequency 50Hz
Rated Power ≤3KW
Application Strong acid, alkali containing gas
Diaphragm material PTFE
Size and weight Product Size(LWH) 330×310×460mm 15KG
Environment temp. 5~40℃
Protection degree IP20
Standby power 3W
Max. extraction 20L/MIN
Total power 130W

Vacuum controller*1,Diaphragm pump*1 ,Coil condenser*1,

S35 Receiving flask500ml*1,Waste absorption*1set

Noise 55db
