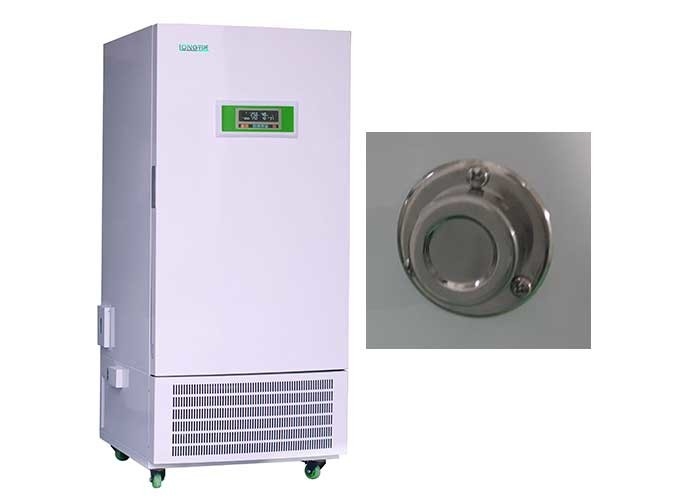

Pharmaceutical Drug Stability Test Chamber Programmable Dual Refrigeration System

Pharmaceutical Drug Stability Test Chamber Programmable Dual Refrigeration System

  • Pharmaceutical Drug Stability Test Chamber Programmable Dual Refrigeration System
Pharmaceutical Drug Stability Test Chamber Programmable Dual Refrigeration System
Product Details:
Place of Origin: China
Brand Name: LONGYUE
Certification: ISO9001, CE
Model Number: LDS-275GY-N / LDS-275GT-N
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden case
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 100 set / month
Contact Now
Detailed Product Description
Temperature Range(℃): Without Illumination:4~50; With Illumination:10~50 Temperature Fluctuation: ±0.5
Temperature Uniformity (℃): ±2 Humidity Range(RH): 30~95%
Humidity Stability(RH): ±3 Temperature Resolution(℃): 0.1
Illumination(LX): 0~6000 Adjustable Illumination Difference((LX): ≤±500
Timing Range: 1~99 Hours/period Chamber Size(W×D×H)mm: 580×510×935
High Light:

temperature and humidity test chamber


temperature humidity environmental chamber

Pharmaceutical Use Medicine Drug Stability Test ChamberHot Selling Programmable Stability LDS-N Series


A Stability Testing Chamber allows for the conduct and monitoring of chemical, biological, and microbiological tests.

Within the chamber, products can be tested to see if factors such as humidity, light and temperature influence products whilst they are being stored.



★ Dual refrigeration system.

★ Imported compressor with self-developed compressor cooling system, extend service life of the compressor.

★ Imported humidity sensor, ensuring high accuracy of humidity.

★ PID control for temperature and humidity, more accurate,easy menu operation interface.

★ Over-temperature alarm system:automatically stop working when exceeded the limit temperature and send out audible and visual alarm,ensure experiments run safely.

★ Large LCD screen to display more data at same time.

★ Newest multi-segment programmable control technology for temperature and humidity, high precision.With multiple programs and multiple cycles, each cycle is divided into 30 segments, each segment contains 99 hours and 99 minutes of cycle steps, it can happily meet almost all the complicated experiment process.

★ Equipped with JAKEL circulation fan ,unique designed air duct for good air circulation, ensuring good temperature uniformity inside.

★ Equipped with built-in stainless steel water tank at the bottom of equipment to supply water by pump for the humidification tank.

★ Equipped with spare temperature control which ensures the product work normally even the main temp.control failed(for heating).

★ Equipped with printer which can record and print the operating parameters at any time.

★ Mirror stainless steel chamber, adjustable shelf.

★ The chamber is equipped with a power socket and UV lamp for sterilization.

★ Double door design. Tempered glass inner door for clear observation. The outer door adopts magnetic seal design, good sealing performance.


Safety Device

Over temperature protection

Compressor over current protection

Over compressing protection

Water shortage protection

Heater overheat protection

Audible and visual alarm system








LDS-175Y-N/ LDS-175T-N

LDS-275Y-N / LDS-275T-N

LDS-375Y-N / LDS-375T-N

LDS-475Y-N / LDS-475T-N

LDS-800Y-N / LDS-800T-N

LDS-1075Y-N / LDS-1075T-N

LDS-175GY-N / LDS-175GT-N

LDS-275GY-N / LDS-275GT-N

LDS-375GY-N / LDS-375GT-N

LDS-475GY-N / LDS-475GT-N

LDS-800GY-N / LDS-800GT-N

LDS-1075GY-N / LDS-1075GT-N







Temperature & Humidity Temperature & Humidity & Light Temperature & Light
Temperature Range(℃) 0~65

Without Illumination:4~50

With Illumination:10~50

Temperature Fluctuation ±0.5
Temperature Uniformity (℃) ±2
Humidity Range(RH) 30~95% None
Humidity Stability(RH) ±3
Temperature Resolution(℃) 0.1
Illumination(LX) None 0~6000 adjustable
Illumination Difference((LX)   ≤±500
Timing Range 1~99 hours/period
Temp.and Humidity adjusting Balance temperature and humidity adjusting Balance temperature adjusting
Cooling System Imported compressor

Y: Programmable (LCD display)

T: Programmable (touch screen)

GY: Programmable (LCD display)

GT: Programmable (touch screen)

HY:Programmable (LCD display)


Capacitance sensor

Ambient Temperature RT+5~30℃
Power Supply AC 220V±10% ,50HZ
Power Rating(W) 1400/1950/2600/2800/3000/3200 1650/2200/2700/2900/3100/3300 1300/1750/2400/2600/2700/2800
Chamber Volume(L) 175,275,375,475,800,1075
Chamber Size(W×D×H)mm







Shelf 3
Printer Yes
Safety Device Compressor overheating and over pressure protection,Fan overheating protection, Over temperature protection, Overload protection,water shortage protection
