| Place of Origin: | China |
| Brand Name: | LONGYUE |
| Certification: | ISO9001, CE |
| Model Number: | LAC-N |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 100 set / month |
| High Light: | plant incubator growth chamber,plant growth cabinet |
||
|---|---|---|---|

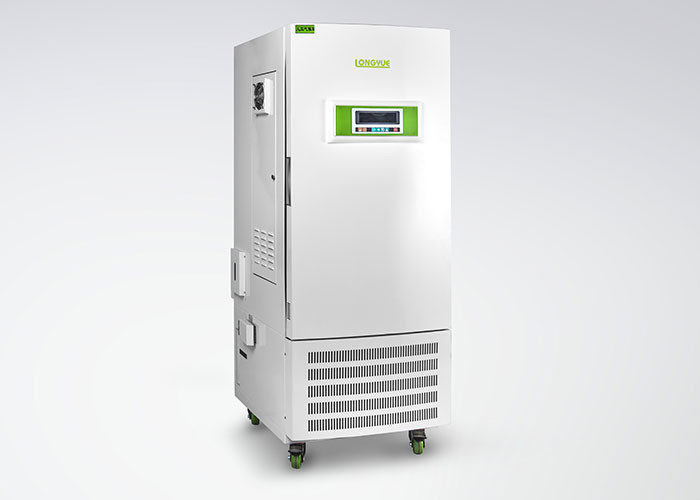

LAC-N Climate Chamber
Features:
★ Adopt imported fluorine-free compressor, environment friendly and reliable.
★ Adopt imported brand humidity sensor, with self-designed built-in water tank and electric heating humidifying system, ensuring high accuracy for humidity.
★ Double door design, the inner door is made of tempered glass, can directly observe the culture in the working chamber. the outer door is magnetically sealed.
★ Large LCD touch screen to display multiple parameters at same time , menu interface, enjoyable operation.
★ Adopt mirror stainless steel inner tank, shelves inside the chambers can be freely adjustable without tool, convenient for disinfection and cleaning.
★ The left bottom side is equipped with detachable water level sensor to control the humidifying of tank, which is convenient for operators to check and repair.
★Lights from 3 side and 6 levels can be adjusted.
◆ Intelligent Control
★ It can simulate the temperature changes of nature during the day and night and the multi-directional nature light.
★The parameters set by the user can be automatically stored in case of power cut, it will run the original setting program after power restored.
★Automatically control for circulating wind speed to avoid plant blowing by strong wind duringtest.
◆ Multi-segment program Control
★The temperature, humidity, illuminance, time and heating rate are controlled by multi-segment program, which simplifies the complicated test process and realizes automatic control and operation.
◆ Self-diagnosis function
★ When the climate chamber fails, the fault information will display on LCD screen, easy for check.
◆ Safety function
★ Independent temperature limit alarm system, giving sound and visual alarm to prompt operator, ensuring safe operation of equipment.
★ Alarm for high or low temperature.
★ Equipped with leakage protection
★ Equipped with spare temperature control which ensures the product work normally even the main temperature control failed(for heating).
★ Data control system (optional)
★ Optional RS485 or USB interface and software.
★ With data logging, data communication, and failure analysis function.
★ Optional printer for data recording and print, compliance with GMP standards.
◆ Optional Wireless alarm system (SMS alarm system)
★ When the device fails and operator is not in the field, the system will automatically collect the fault signal and send a message to the receiver's mobile phone in first time to ensure timely troubleshooting and resume testing.
Options:
1. RS485/232 connector and software
2. Wireless alarm system (SMS alarm system)
3. CO2 inlet (promoting plant growth)
4. CO2 controller (imported infrared CO2 sensor) ,CO2 Range:0~10%,0-3000ppm
5. Remote control system
Specifications
| Model | LAC-175-N | LAC-275-N | LAC-375-N | LAC-475-N | LAC-1075-N |
| Chamber Volume(L) | 175 | 275 | 375 | 475 | 1075 |
| Temperature range (℃) | With light:10～55℃ Without light:0～55℃ | ||||
| Temperature Stability | ±1℃ | ||||
| Display Resolution | 0.1℃ | ||||
| Temperature Uniformity | ±1℃ | ||||
| Humidity Range | 30~95%RH | ||||
| Humidity Deviation | ±3RH | ||||
| Iight Intensity | 0~12000LX | 0～20000LX | 0～25000LX | 0～30000LX | 0～30000LX |
| Program Control | Separately set for temperature and light, can set 30-segment program, each section can be set from 1 to 99 hours. | ||||
| Power Rating | 860W | 1700W | 2100W | 4000W | 5000W |
| Power Supply | AC220V, 50HZ | ||||
| Ambient Temperature | +5～35℃ | ||||
| Working | Long continuous operation | ||||
| Chamber Size(W×D×H)cm | 45*42*93 | 58*51*93.5 | 59*55*116 | 70*55*125 | 95*70*160 |
| Exterior Size(W×D×H)cm | 61*62*150 | 74*71*157 | 75*75*173 | 86*75*182 | 101*90*224 |
| Shelf(Standard) | 3pcs | ||||
