Lab Laminar Flow Air Clean Bench Hood Horizontal Type CE Certificated LCB-1CU

Lab Laminar Flow Air Clean Bench Hood Horizontal Type CE Certificated LCB-1CU

  • Lab Laminar Flow Air Clean Bench Hood Horizontal Type CE Certificated LCB-1CU
Lab Laminar Flow Air Clean Bench Hood Horizontal Type CE Certificated LCB-1CU
Product Details:
Place of Origin: China
Brand Name: LONGYUE
Certification: ISO9001, CE
Model Number: LCB-1CU
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden case
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 100 set / month
Contact Now
Detailed Product Description
Airflow Direction: Horizontal Applicable Station: Two Persons One Side
Clean Level: Class 100@≥0.5um(U.S. Federal 209E) Wind Speed: 0.32~0.66m/s(Recommended Speed : 0.3m/s)
Noise Level: ≤65dB(A) Vibration Semi-Peak Value: ≤5um
Illumination Intensity: ≥300Lx Interior Size(W*D*H)cm: 168×48×60
Exterior Size (W*D*H)cm: 175×72×146
High Light:

vertical air flow clean bench

,

horizontal laminar flow cabinet

CE Certificated Lab Laminar Flow Air Clean Bench Horizontal Type LCB-1CU



Major Differences in Horizontal Laminar Flow and Vertical Laminar Flow:

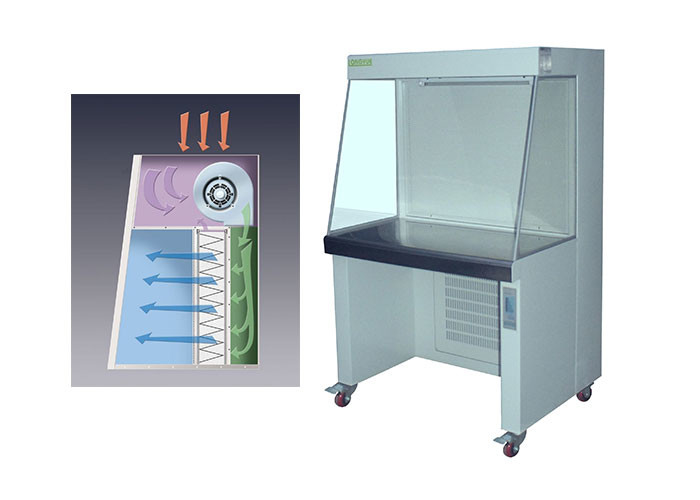

Horizontal laminar flow hoods more often have filters located on the back wall. Unidirectional filtered air is then passed horizontally from the rear, straight across the work surface.

Vertical laminar flow hoods typically have a top or ceiling mounted filter. Air exiting the filter media passes unidirectionally from the unit ceiling and then across the work surface, sweeping particles out of the enclosure as it goes.



Features:

☆ Horizontal type, stainless steel board, easy to clean.

☆ Large LCD screen to display air flow, working time, pressure difference, working status, etc.

☆ High efficient ironclad centrifugal fan with the features of stable work and low noise.


Specifications

Model LCB-1BU LCB-1CU LCB-840U LCB-1300HU
Applicable Station one person one side two persons one side one person two side two persons one side
Airflow Direction Horizontal
Clean Level Class 100@≥0.5um(U.S. Federal 209E)
Wind Speed 0.32~0.66m/s(Recommended speed : 0.3m/s)
Noise Level ≤65dB(A)
Vibration Semi-Peak Value ≤3um ≤5um ≤3um ≤4um
Illumination Intensity ≥300Lx
Power Supply AC 220V/50Hz
Power Rating(KW) 0.4 0.8 0.4 0.8
N.W. / G. W.(Kg)(kg) 80/130 130/210 80/130 130/210
Interior Size(W*D*H)cm 82×48×60 168×48×60 72×65×57 118×65×57
Exterior Size (W*D*H)cm 90×72×146 175×72×146 84×82×143 130×82×143
Package Size (W*D*H)cm 100×84×163 189×84×163 98×94×160 144×94×160
HEPA Filter

820×600×50

one pc

820×600×50

two pcs

760×610×50

one pc

610×610×50 two pcs
Note With UV lamp
