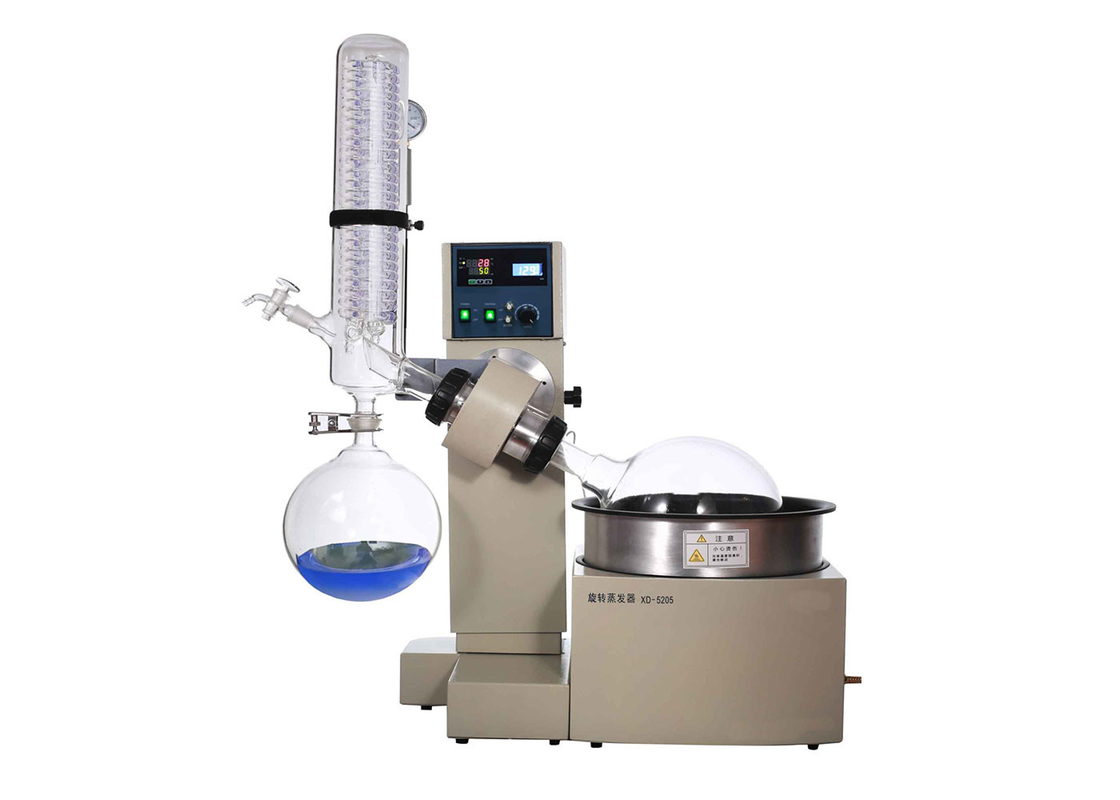

ISO 5L 150rpm/Min Stepless Rotary Vacuum Evaporator

ISO 5L 150rpm/Min Stepless Rotary Vacuum Evaporator

  • ISO 5L 150rpm/Min Stepless Rotary Vacuum Evaporator
ISO 5L 150rpm/Min Stepless Rotary Vacuum Evaporator
Product Details:
Place of Origin: China
Brand Name: LONGYUE
Certification: CE ISO
Model Number: XD-5205
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Carton
Delivery Time: 7 workding days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500sets/month
Contact Now
Detailed Product Description
Lift: Button-press Lifting With Length 150mm Rotating Speed: 0-150rpm/min
Rotation Control: Rotary Stepless Control Evap. Capacity: Max.0.38L/min (H2O)
Temp. Range/precision: Auto Control; Digital Display; Water Bath:RT.-99℃±1℃ Bath Material: Integral Teflon Bath
Bath Size: Φ29*17cm Vacuum: Vacuum Gauge And Valves To Control
Flask Volume: 0.25-5L Condenser: Vertical Dual-reflux Coil Condenser
Condense Area: 0.31㎡ Feeder: Valve Type Feeding Pipe Equipped With Tetrafluoroethylene Pipe And Water Retaining Ring
Sealing: Imported PTFE And Special Complex Compounded With Special Technique, Which Ensures Good Sealing And Improves The Anti-corrosion And Durability Property.
High Light:

Stepless Rotary Vacuum Evaporator


150rpm/Min Rotary Vacuum Evaporator


5L Rotary Vacuum Evaporator

XD-5205 Laboratory Rotary Vacuum Evaporator
  1. Main metal parts are made of stainless steel and rust-proof aluminium alloy.
  2. Elegant appearance with compact structure design, Practical and durable to use.
  3. Sealing system made of fluororubber and imported PTFE material; combined with glass spindle, which is durable and without slag droppings.
  4. Water bath with temperature range from room temperature to 99 ℃.
  5. Protection function: heater stop heating in over temperature condition.
  6. Equipped with protection cap, which is heat preserved, energy saving and anti-spill and anti-boiling


Technical Parameter:
Model  XD-52CS XD-52CS-1 XD-5203 XD-5205
Lift Manual sliding lifting with length of 150mm Rotary lifting with lifting length of 150mm Strut-press lifting with length of 150mm Button-press lifting with length 150mm
Rotating Speed 0-150rpm/min 0-130rpm/min;
Rotation control Rotary stepless control stepless control; digital display
Evap. Capacity / Max.0.18L/min (H2O) Max.0.21L/min (H2O) Max.0.38L/min (H2O)
Temp. range/precision Auto control; digital display; Water Bath:RT.-99℃±1℃
Bath Material Integral Teflon bath stainless steel heating bath with outer heater Integral Teflon bath
Bath Size Φ22*11.5cm Φ24.5*15cm Φ26*15cm Φ29*17cm
Vacuum NO NO NO Vacuum gauge and valves to control
Heater Power 1KW 2KW
Flask Volume 0.25-2L 0.25-3L 0.25-5L
Environment Temp. 5-40℃
Condenser Cold trap Vertical Dual-reflux coil condenser
Condense area / 0.15㎡ 0.31㎡
Feeder Valve type feeding pipe equipped with tetrafluoroethylene pipe and water retaining ring
Sealing Imported PTFE and special complex compounded with special technique, which ensures good sealing and improves the anti-corrosion and durability property.
Factory Configuration

24# eggplant Rotating Flask 500ml*1

Ball mill mouth Receiving Flask:250ml*1

24# standard mouth Rotating Flask 1L*1

Receiving Flask:500ml*1

24# standard mouth Rotating Flask 3L*1

Receiving Flask:2L*1

29# eggplant flask 1L*1

F50 Flange mouth round bottom flask 5L*1

S35 ball mill mouth flask 3L*1

Input AC220V/50HZ



Pack size:


G/W 20KG
Product size: 71*31*91cm

Pack size:

69*46*42cm+43*37*32cm; G/W 23+6KG
Product size: 79*40*83cm

Pack size:

77*51*47cm+43*37*32cm; G/W 25+6KG
Product size: 79*45*86cm

Pack size:

65*50*71cm+54*47*39cm; G/W 42+4KG
Product size: 72*38*94cm
