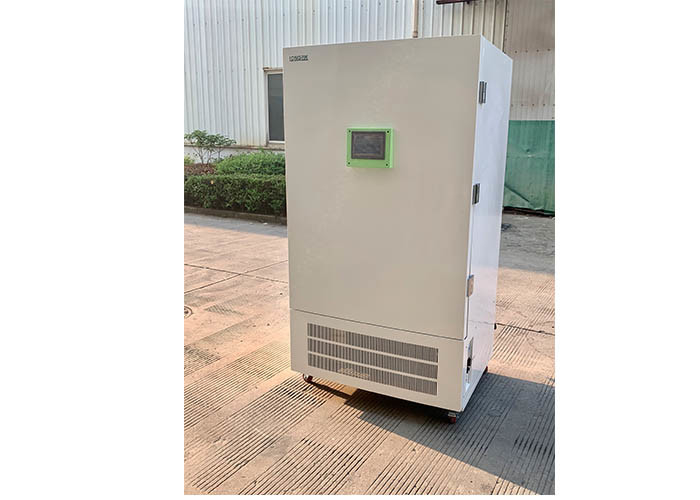

Illumination PT100 800L Drug Stability Test Chamber

Illumination PT100 800L Drug Stability Test Chamber

  • Illumination PT100 800L Drug Stability Test Chamber
  • Illumination PT100 800L Drug Stability Test Chamber
Illumination PT100 800L Drug Stability Test Chamber
Product Details:
Place of Origin: China
Brand Name: LONGYUE
Certification: ISO9001, CE
Model Number: LDS-800GT-N
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T
Supply Ability: 200 set / month
Contact Now
Detailed Product Description
Temperature Range(℃): 0~65 Temperature Fluctuation: ±0.5
Temperature Uniformity (℃): ±2 Humidity Range(RH): 30~95%
Humidity Stability(RH): ±3 Temperature Resolution(℃): 0.1
Illumination(LX): YES Sensor: PT100
Cooling System: Imported Compressor Volume: 800L
UV: Optional
High Light:

800L Stability Test Chamber


PT100 Stability Test Chamber


PID Control Stability Test Chamber

Drug Stability Test Chamber


This equipment provide a long time stable environment of temperature, humidity and illumination for the Pharmaceutical industry medicine invalidation evaluation. It’s applied in the medicine accelerating test, growth test, high humidity test and high illuminance test.



★ Dual refrigeration system.

★ Imported compressor with self-developed compressor cooling system, extend service life of the compressor.

★ Imported humidity sensor, ensuring high accuracy of humidity.

★ PID control for temperature and humidity, more accurate,easy menu operation interface.

★ Over-temperature alarm system:automatically stop working when exceeded the limit temperature and send out audible and visual alarm,ensure experiments run safely.

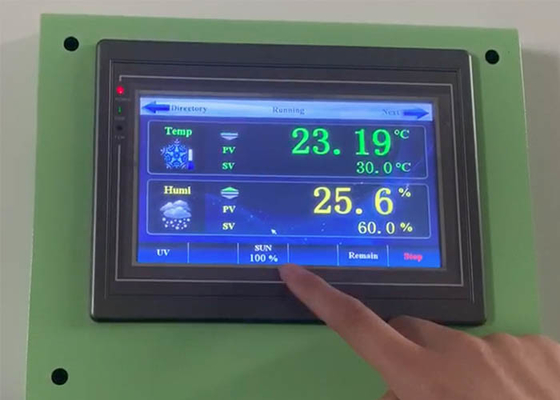

★ Large Touch screen to display more data at same time.

★ Newest multi-segment programmable control technology for temperature and humidity, high precision.With multiple programs and multiple cycles, each cycle is divided into 30 segments, each segment contains 99 hours and 99 minutes of cycle steps, it can happily meet almost all the complicated experiment process.


★ Equipped with built-in stainless steel water tank at the bottom of equipment to supply water by pump for the humidification tank.

★ Equipped with spare temperature control which ensures the product work normally even the main temp.control failed(for heating).

★ Equipped with printer which can record and print the operating parameters at any time.

★ Mirror stainless steel chamber, adjustable shelf.

★  UV lamp for sterilization is optional










LDS-175Y-N/ LDS-175T-N

LDS-275Y-N / LDS-275T-N

LDS-375Y-N / LDS-375T-N

LDS-475Y-N / LDS-475T-N

LDS-800Y-N / LDS-800T-N

LDS-1075Y-N / LDS-1075T-N

LDS-175GY-N / LDS-175GT-N

LDS-275GY-N / LDS-275GT-N

LDS-375GY-N / LDS-375GT-N

LDS-475GY-N / LDS-475GT-N

LDS-800GY-N / LDS-800GT-N

LDS-1075GY-N / LDS-1075GT-N







Temperature & Humidity Temperature & Humidity & Light Temperature & Light
Temperature Range(℃) 0~65

Without Illumination:4~50

With Illumination:10~50

Temperature Fluctuation ±0.5
Temperature Uniformity (℃) ±2
Humidity Range(RH) 30~95% None
Humidity Stability(RH) ±3
Temperature Resolution(℃) 0.1
Illumination(LX) None 0~6000 adjustable
Illumination Difference((LX)   ≤±500
Timing Range 1~99 hours/period
Temp.and Humidity adjusting Balance temperature and humidity adjusting Balance temperature adjusting
Cooling System Imported compressor

Y: Programmable (LCD display)

T: Programmable (touch screen)

GY: Programmable (LCD display)

GT: Programmable (touch screen)

HY:Programmable (LCD display)


Capacitance sensor

Ambient Temperature RT+5~30℃
Power Supply AC 220V/110V±10% ,50HZ
Power Rating(W) 1400/1950/2600/2800/3000/3200 1650/2200/2700/2900/3100/3300 1300/1750/2400/2600/2700/2800
Chamber Volume(L) 175,275,375,475,800,1075
Chamber Size(W×D×H)mm







Shelf 3
Printer Yes
Safety Device Compressor overheating and over pressure protection,Fan overheating protection, Over temperature protection, Overload protection,water shortage protection
