| Place of Origin: | China |
| Brand Name: | LONGYUE |
| Certification: | ISO9001, CE |
| Model Number: | LCB-1300HU |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 100 set / month |
| Applicable Station: | Two Persons One Side | Airflow Direction: | Horizontal |
|---|---|---|---|
| Clean Level: | Class 100@≥0.5um（U.S. Federal 209E） | Wind Speed: | 0.32～0.66m/s（Recommended Speed : 0.3m/s） |
| Noise Level: | ≤65dB（A） | Vibration Semi-Peak Value: | ≤4um |
| Illumination Intensity: | ≥300Lx | Interior Size(W*D*H)cm: | 118×65×57 |
| Exterior Size (W*D*H)cm: | 130×82×143 | ||
| High Light: | laminar air flow chamber,horizontal laminar flow cabinet |
||

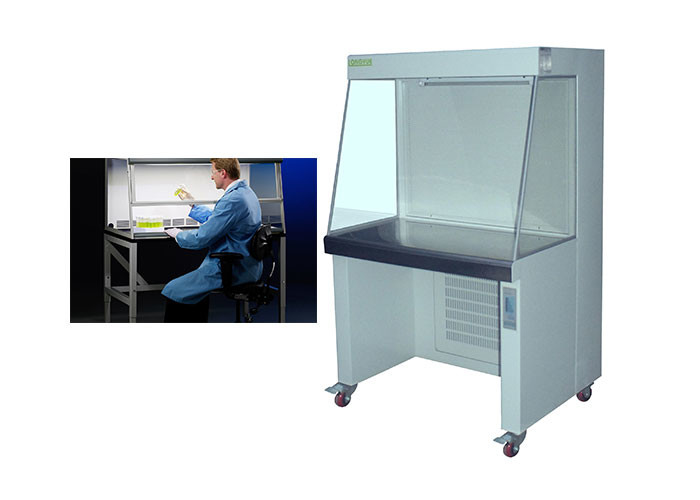

Horizontal Or Vertical Air Supply Clean Bench Laminar Flow Cabinet LCB-1300HU
Major Differences in Horizontal Laminar Flow and Vertical Laminar Flow:
Horizontal laminar flow hoods more often have filters located on the back wall. Unidirectional filtered air is then passed horizontally from the rear, straight across the work surface.
Vertical laminar flow hoods typically have a top or ceiling mounted filter. Air exiting the filter media passes unidirectionally from the unit ceiling and then across the work surface, sweeping particles out of the enclosure as it goes.
Features:
☆ Horizontal type, stainless steel board, easy to clean.
☆ Large LCD screen to display air flow, working time, pressure difference, working status, etc.
☆ High efficient ironclad centrifugal fan with the features of stable work and low noise.
Specifications
| Model | LCB-1BU | LCB-1CU | LCB-840U | LCB-1300HU |
| Applicable Station | one person one side | two persons one side | one person two side | two persons one side |
| Airflow Direction | Horizontal | |||
| Clean Level | Class 100@≥0.5um(U.S. Federal 209E) | |||
| Wind Speed | 0.32～0.66m/s(Recommended speed : 0.3m/s) | |||
| Noise Level | ≤65dB(A) | |||
| Vibration Semi-Peak Value | ≤3um | ≤5um | ≤3um | ≤4um |
| Illumination Intensity | ≥300Lx | |||
| Power Supply | AC 220V/50Hz | |||
| Power Rating(KW) | 0.4 | 0.8 | 0.4 | 0.8 |
| N.W. / G. W.(Kg)(kg) | 80/130 | 130/210 | 80/130 | 130/210 |
| Interior Size(W*D*H)cm | 82×48×60 | 168×48×60 | 72×65×57 | 118×65×57 |
| Exterior Size (W*D*H)cm | 90×72×146 | 175×72×146 | 84×82×143 | 130×82×143 |
| Package Size (W*D*H)cm | 100×84×163 | 189×84×163 | 98×94×160 | 144×94×160 |
| HEPA Filter |
820×600×50 one pc |
820×600×50 two pcs |
760×610×50 one pc |
610×610×50 two pcs |
| Note | With UV lamp | |||
