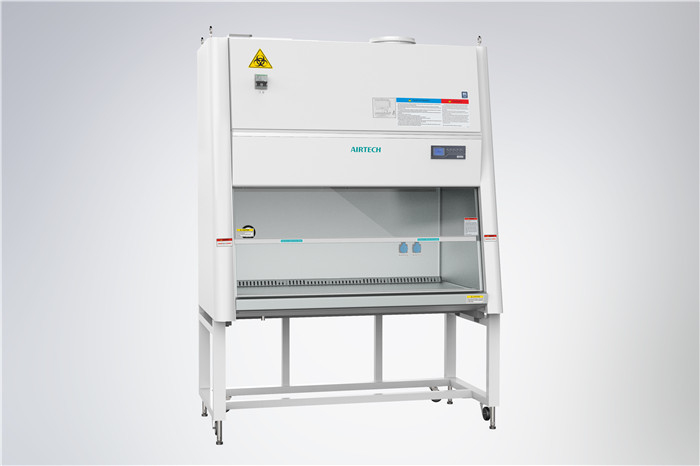

HEPA Filtration 1.3m Stainless Steel Biosafety Cabinet

HEPA Filtration 1.3m Stainless Steel Biosafety Cabinet

  • HEPA Filtration 1.3m Stainless Steel Biosafety Cabinet
HEPA Filtration 1.3m Stainless Steel Biosafety Cabinet
Product Details:
Place of Origin: China
Brand Name: LONGYUE
Certification: ISO CE
Model Number: BSC-1301IIA2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: wooden carton
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Nominal Size: 1.3meter(4') Filtration Efficiency: HEPA: ≥99.995%, @0.3μm/ULPA:≥99.9995%, @0.12μm
Downflow Velocity: 0.35 M/s(68.88fpm) Inflow Velocity: 0.54 M/s(106.27fpm)
Vibration(μm): ≤5 μm(center Of Tabletop) Opening Height(mm): 250
Operator Protection: A. Total Colony In Impaction Sampler ≤10CFU./time B. Total Colony In Impaction Sampler ≤5CFU./time Product Protection: Total Colony In Culture Dish ≤5CFU./time
Cross Contamination: Total Colony In Culture Dish ≤2CFU./time Work Dimension (W1XD1XH1): 1270*600*620 Mm
Overall Dimension: 1500*790*2050 Mm Size And Qty. Of Light: LED 24.5 W X ②
Size And Qty. Of UV Light: 15 W X ② Lumin.: ≥750 Lx
Working Area Materials: SS304 Fully Finished Air Direction: Top Out
High Light:

Stainless Steel Biosafety Cabinet

,

1.3m Biosafety Cabinet

,

HEPA Filtration Biosafety Cabinet

BSC-1301/1302IIA2 Stainless Steel Work table Biosafety Cabinet (BSC-01/02IIA2)



Description



Friendly Control Panel

◆ LED screen, show the air velocity, time, fan station, alarm in real time.



Safe and Reliable, Energy-Efficient

◆ DC fan and LED light make the operation power consumption save 30%.

◆ Intelligent auto-supply system of imported blower ensures the change of air volume less than 10% when the resistance of filter increases 50% and enhance safety.

◆ The alarm system for safe operation height is interlocked with light. At the same time light is Interlocked with sterilizing.

◆ Leak detection in cabinet, no leakage at 500Pa.

◆ UV light with set timer, safer and high efficiency.



Humanized design

◆ 10°sloped front make it comfortable to operator.

◆ Negative pressure and double layers chamber around ensure non-leakage, non-pollution.

◆ Demountable circular-arc armrest can alleviate working tiredness and make it easy to transport.

◆ Front window adopts hanging lifting system (Imported from Japan) and more than 5mm thickness security glass with arbitrary positioning, high stability and convenient to sterilization when it closed. (Patent No.: ZL97235425.5)

◆ Movable stainless steel worktable 4 liter capacity stainless steel collecting tank with below down valve, easy to collect water, cleaning and disinfection.

◆ Non-obstructive air return mode in the front suction channel (Patent No.: ZL200520140353.8).

◆ The adjustable leveling foot is without exposure thread.



HEPA filters

◆ USA HV HEPA Filter Medium, provide 99.995% typical efficiency for particle size over 0.3 microns, and the materials is glass fiber.

◆ A minimum ISO 5 air quality in the work area

◆ Patent of non leakage.

◆ Every HEPA filters will be tested to ensure non leakage.





Model/Item BSC-1301IIA2 BSC-1302IIA2
Nominal Size 1.3meter(4')
Filtration Efficiency HEPA: ≥99.995%, @0.3μm/ULPA:≥99.9995%, @0.12μm
Downflow Velocity 0.35 m/s(68.88fpm)
Inflow Velocity 0.54 m/s(106.27fpm)
Noise ≤67 dB(A)
Vibration(μm) ≤5 μm(center of tabletop)
Power Supply AC115V,1φ,60Hz AC230V,1φ,50/60Hz
Opening Height(mm) 250
Operator Protection

A. Total colony in impaction sampler ≤10CFU./time

B. Total colony in impaction sampler ≤5CFU./time

Product Protection Total colony in culture dish ≤5CFU./time
Cross Contamination Total colony in culture dish ≤2CFU./time
Max Consumption(with spare socket) 1.5 kVA /
Rated Power(without spare socket) 1 kVA 0.46 kVA
Weight 300 kg



Work Dimension

(W1XD1XH1)



1270*600*620 mm

(50''x23.6''x24.4'')



Overall Dimension

(WXDXH)



1500*790*2050 mm

(59.1''x31.1''x80.7'')

Size and Qty. of

Light

LED 24.5 w x ②

Size and Qty. of

UV Light

15 w x ②
Lumin. ≥750 Lx
Cabinet Materials High-grade steel and lacquered in ivory
Working Area Materials SS304 fully finished
Air Direction Top out
Plug Style USA Type(AC125V/10A) /
Qty. of Spare Socket USA Type(AC125V/2A) 2 units /
