| Place of Origin: | China |
| Brand Name: | LONGYUE |
| Certification: | ISO CE |
| Model Number: | HVS-1300-U |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden carton |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |
| Cleanliness: | ISO CLASS 5 | Air Velocity: | 0.26~0.38 M/s (55.1~70.9fpm)(adjustable) |
|---|---|---|---|
| Noise: | ≤65 DB(A) | Illumination: | ≥650 Lx |
| Consumption: | 600 W | Work Dimension (W1XD1XH1): | 1300 X 650 X 720 Mm |
| Overall Dimension (WXDXH): | 1480 X 745 X 1920 Mm | Size & No. Of HEPA Filter: | 1260 X 530 X 69 Mm X1 Set |
| Light: | LED 24.5w X 1 Pc | UV Light (optional): | 30w X 1 Pc |
| High Light: | Laminar Flow Cabinet,Laminar Airflow Cabinet,ISO Laminar Air Flow Chamber |
||

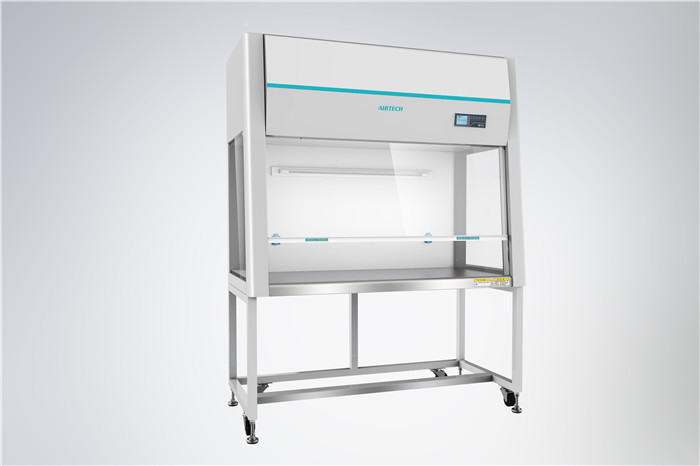

HVS-1000/1300/1600/1800(-U) HVS Exclusive Clean Bench Laminar Flow Cabinet
Description:
1. Friendly Control Panel
◆ Color HD LED display, soft button control.
◆ Showing time, air velocity, temperature and HEPA filter life on screen in real time.
◆ Operator can make an appointment for fan and UV light.
2.Humanized design
◆ 5°sloped front, nice shape, relieving the sense of repression.
◆ Double layer side window, wide vision, convenient to observe.
◆ Integrative stainless steel working table design, easy to clean.
◆ Circular-Arc armrest, reducing fatigue.
◆ Detached Support,easy to assemble and carry
3.Safe and Reliable, Energy-Efficient
◆ It will test by itself when turning on.
◆ ECO mode can reduce energy consumption.
◆ Alarm system for fan , temperature,HEPA filter life.
◆ Light, UV light and front window are interlocked.
◆ The clean air cover all the working area.
◆ The anti UV glass is safe and reliable.
◆ The velocity of air flow is uniform(Patent: 201020511001.X), ensuring air flow pattern reliable
◆ Front window adopts hanging lifting system which imported from Japan. (Patent:97235425.5)
| Model/Item | HVS-1000 | HVS-1300 | HVS-1600 | HVS-1800 |
| Cleanliness | ISO CLASS 5 | |||
| Air velocity | 0.26~0.38 m/s (55.1~70.9fpm)(adjustable) | |||
| Noise | ≤65 dB(A) | |||
| Illumination | ≥650 Lx | |||
| Power supply | AC220V, 1φ, 50Hz | |||
| Consumption※ | 300 w | 600 w | 600 w | 600 w |
| Weight | 170 kg | 205 kg | 230 kg | 250 kg |
|
Work Dimension (W1XD1XH1)
|
1000 x 650 x 720 mm (39.4'' x 25.6'' x 28.3'') |
1300 x 650 x 720 mm (51.2'' x 25.6'' x 28.3'') |
1600 x 650 x 720 mm (63.0'' x 25.6'' x 28.3'') |
1800 x 650 x 720 mm (70.9'' x 25.6'' x 28.3'') |
|
Overall Dimension (WXDXH)
|
1180 x 745 x 1920 mm (46.5'' x 29.3'' x 75.6'') |
1480 x 745 x 1920 mm (58.3'' x 29.3'' x 75.6'') |
1780 x 745 x 1920 mm (70.1'' x 29.3'' x 75.6'') |
1980 x 745 x 1920 mm (78.0'' x 29.3'' x 75.6'') |
|
Size & No. HEPA Filter
|
960 x 530 x 69 mm x1 set (37.8''x20.9''x2.7''x1 set) |
1260 x 530 x 69 mm x1 set (49.6'' x 20.9'' x 2.7'' x1 set) |
1560 x 530 x 69 mmx1 set (61.4'' x 20.9'' x 2.7'' x1 set) |
1760 x 530 x 69 mm x1 set (69.3'' x 20.9'' x 2.7'' x1 set) |
| Light | LED 15w x 1 pc | LED 24.5w x 1 pc | LED 31w x 1 pc | LED 36w x 1 pc |
| UV Light (optional) | 18w x 1 pc | 30w x 1 pc | 36w x 1 pc | 36w x 1 pc |
| Materials | Working table: All-in-one Stainless Steel, Outside cabinet: high grade steel and lacquered in ivory | |||
| Optional: working area all ss304 | ||||
| Mode of Operation | single people/single side | double people/single side | ||
