| Place of Origin: | China |
| Brand Name: | LONGYUE |
| Certification: | ISO CE |
| Model Number: | MS-H340-S4 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden carton |
| Delivery Time: | 3-7days |
| Payment Terms: | T/T |
| Supply Ability: | 500sets/month |
| Work Plate Dimension: | Φ135mm（5inch） | Plate Material: | Stainless Steel With Ceramic Coating |
|---|---|---|---|
| Stirring Positions: | 4 | Max. Stirring Quantity Of Single Position (H2O): | 10L |
| Max. Magnetic Bar: | 40mm | Speed Range: | 200-1500rpm |
| Temperature Range: | 25-340℃ | Dimensions[WxDxH: | 2 |
| High Light: | digital magnetic stirrer,chemistry magnetic stirrer |
||

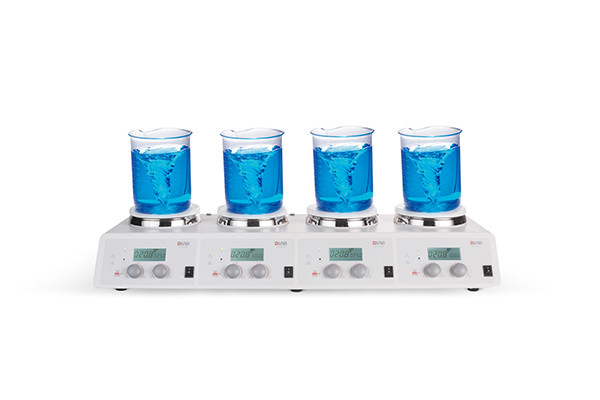

Magnetic Stirrer With Digital Display MS-H340-S4
Features
• Independent heating and stirring control
• LCD display shows actual temperatures and speed
• PID controller ensures a precise and steady heating process, Max.temperature up to 340℃
• Brushless DC motor enables more powerful speed control
• External temperature sensor(PT1000) with accuracy at 0.2℃
• Overheating protection temperature at 420℃
• Stainless steel work plate with ceramic coating provides good chemical-resistant performance
• A wide variety of accessories are available.
|
Specifications
|
MS-H340-S4
|
|
Work plate dimension
|
Φ135mm(5inch)
|
|
Plate material
|
Stainless steel with ceramic coating
|
|
Motor type
|
Brushless DC motor
|
|
Motor rating input
|
1.8W×4
|
|
Power
|
515W×4
|
|
Heating Power
|
500W×4
|
|
Voltage
|
100-120V,60Hz; 200-240V,50 Hz
|
|
Stirring positions
|
4
|
|
Max. stirring quantity
of single position (H2O)
|
10L
|
|
Max. magnetic bar
|
40mm
|
|
Speed range
|
200-1500rpm
|
|
Speed display
|
LCD
|
|
Temperature display
|
LCD
|
|
Control accuracy of sensor[rpm]
|
±20
|
|
Temperature range
|
25-340℃
|
|
Over temperature protection
|
420°C
|
|
Temperature display accuracy
|
±0.1°C
|
|
External temp. sensor
|
PT1000(Accuracy±0.2℃)
|
|
IP Protection class
|
IP21
|
|
Dimensions[WxDxH]
|
698×270×128mm
|
|
Weight
|
9.5kg
|
|
Permissible ambient temperature
|
5～40°C
|
|
Permissible relative humidity
|
80%RH
|
