| Place of Origin: | China |
| Brand Name: | LONGYUE |
| Certification: | ISO9001, CE |
| Model Number: | LYZ |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 100 set / month |
| High Light: | laminar air flow chamber,horizontal laminar flow cabinet |
||
|---|---|---|---|

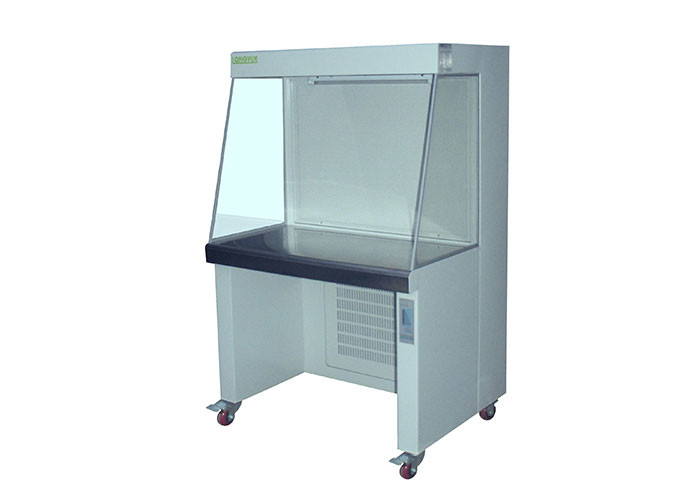

LCB Clean bench (Horizontal Type)
Features:
☆ Horizontal type, stainless steel board, easy to clean.
☆ Large LCD screen to display air flow, working time, pressure difference, working status, etc.
☆ High efficient ironclad centrifugal fan with the features of stable work and low noise.
Specifications
| Model | LCB-1BU | LCB-1CU | LCB-840U | LCB-1300HU |
| Applicable Station | one person one side | two persons one side | one person two side | two persons one side |
| Airflow Direction | Horizontal | |||
| Clean Level | Class 100@≥0.5um(U.S. Federal 209E) | |||
| Wind Speed | 0.32～0.66m/s(Recommended speed : 0.3m/s) | |||
| Noise Level | ≤65dB(A) | |||
| Vibration Semi-Peak Value | ≤3um | ≤5um | ≤3um | ≤4um |
| Illumination Intensity | ≥300Lx | |||
| Power Supply | AC 220V/50Hz | |||
| Power Rating(KW) | 0.4 | 0.8 | 0.4 | 0.8 |
| N.W. / G. W.(Kg)(kg) | 80/130 | 130/210 | 80/130 | 130/210 |
| Interior Size(W*D*H)cm | 82×48×60 | 168×48×60 | 72×65×57 | 118×65×57 |
| Exterior Size (W*D*H)cm | 90×72×146 | 175×72×146 | 84×82×143 | 130×82×143 |
| Package Size (W*D*H)cm | 100×84×163 | 189×84×163 | 98×94×160 | 144×94×160 |
| HEPA Filter |
820×600×50 one pc |
820×600×50 two pcs |
760×610×50 one pc |
610×610×50 two pcs |
| Note | With UV lamp | |||
