Place of Origin: | China |
Brand Name: | LONGYUE |
Certification: | ISO CE |
Model Number: | TM-XD24D |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiation |
Packaging Details: | wooden carton |
Delivery Time: | 7-14days |
Payment Terms: | T/T |
Supply Ability: | 500sets/month |
Chamber Volume: | 24L φ250×520mm | Working Pressure: | 0.22Mpa |
---|---|---|---|
Working Temperature: | 134℃ | Temperature Adjust Range: | 105-134℃ |
Timer Range: | 0-99min | Heat Average: | ≤±1℃ |
Sterilizing Plate: | 400×200×30(3piece) | Dimension: | 580×480×384 |
High Light: | steam autoclave machine,vertical autoclave machine |

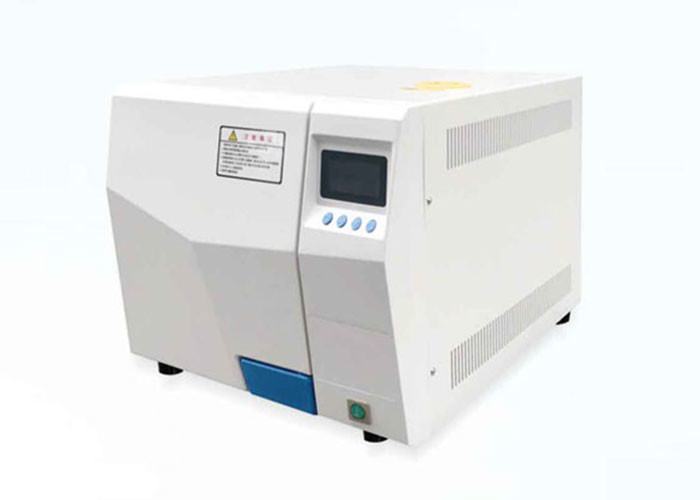

Table top steam sterilizer TM-XD24D
Use
The product utilizes saturated steam to rapidly and efficiently sterilize articles. It can be used in hospitals, public health centers, health stations,clinics in factories and mines, scientific research institutes, etc, to sterilize medical equipment, surgical dressings, glass utensils, solutions,substrata. It can also be used as cooker in plateau areas and be used to make high quality drinking water in industrial and mining enterprises.
Characteristics
• For 4~6 minutes rapidly sterilizin.
• Digital display of working status, touch type key.
• Witprotection of water lacking.
• Exhaust the h 3 fixed .cycles of sterilizing program and adjustable for user.
• The whole process of water adding, temperaturerising, sterilizing, drying steam discharging controlled automatically.
• Steamwater inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.
• Safe cool air automatically.
• Door safety lock system.
• With four stainless steel sterilizing plates.
• The chamber of the sterilizer is made of stainless steel.
• Automatically shut off with beep reminding after sterilization.
• With drying function.
MODEL | TM-XD20D | TM-XD24D |
Technical Data | ||
Stenilizing chamber volume |
20L φ250×420mm |
24L φ250×520mm |
Working pressure |
0.22Mpa
|
|
Working temperature |
134℃
|
|
Temperature adjust range | 105-134℃ | |
Timer range | 0-99min | |
Heat average | ≤±1℃ | |
Power | 1.5KW/AC220V.50Hz | |
Sterilizing plate | 340×200×30(3piece) | 400×200×30(3piece) |
Dimension | 480×480×380 | 580×480×384 |
Exerior package dimension | 700×580×500 | 800×580×500 |
G.W/N.W | 43/40Kg | 50/45Kg |
