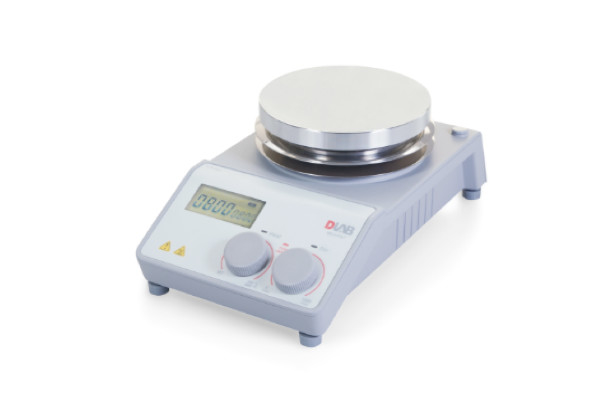

Aluminum Plate Lab Magnetic Stirrer / Digital Magnetic Stirrer 20L MS-H-ProA

Aluminum Plate Lab Magnetic Stirrer / Digital Magnetic Stirrer 20L MS-H-ProA

  • Aluminum Plate Lab Magnetic Stirrer / Digital Magnetic Stirrer 20L MS-H-ProA
Aluminum Plate Lab Magnetic Stirrer / Digital Magnetic Stirrer 20L MS-H-ProA
Product Details:
Place of Origin: China
Brand Name: LONGYUE
Certification: ISO CE
Model Number: MS-H-ProA
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden carton
Delivery Time: 3-7days
Payment Terms: T/T
Supply Ability: 500sets/month
Contact Now
Detailed Product Description
Work Plate Dimension: φ135mm(5inch) Plate Material: Aluminum
Max. Stirring Quantity Of Single Position (H2O): 20L Max. Magnetic Bar: 80mm
Speed Range: 100-1500rpm Resolution±1rpm Temperature Range: Room Temp.-340℃, Increment 1℃
Dimensions[WxDxH: 0
High Light:

digital magnetic stirrer

,

chemistry magnetic stirrer

Magnetic Stirrer With Digital Display MS-H-ProA



Features
• Digital control with max. temperature at 340℃,max speed up to 1500rpm.
• Aluminum alloy work plate with flat plane provides fast heating perfermance, and strong compatibility with various heating containers and heating blocks.
• High-resolution LCD display shows actual temperaturesand speed.
• PID controller ensures a precise and steady heating process.
• External temperature control is possible by connecting the temperature sensor(PT 1000) with accuracy at ±0.2°C.
• Brushless DC motor enables more powerful speed control.
• Three heating modes for selected ( fast heating, standard heating and stable heating ).
• Remote control function through RS232 interface provides PC control and data transmission.



Specifications
MS-H-ProA
Work plate dimension
φ135mm(5inch)
Work plate material
Aluminum
Motor type
Brushless DC motor
Heating temperature range
Room temp.-340℃, increment 1℃
Temperature display accuracy
±0.1℃
Heating power
600w
Speed range
100-1500rpm resolution±1rpm
Max. stirring quantity[H2O]
20L
Speed display
LCD
Temperature display
LCD
Motor rating input
18w
Motor rating output
10w
Max. magnetic bar[length]
80mm
Temperature control accuracy
±1°C(<100℃) ±1%(>100℃)
External temperature sensor
PT1000 (accuracy ±0.2℃)
Over temperature protection
420℃
"Hot" warning
50℃
Data connector
RS232
Protection class
IP21
Voltage
100~120/200-240V 50/60Hz
Power
650w
Dimension[WxDxH]
280×160×100mm
Weight
2.8kg
