| Place of Origin: | China |
| Brand Name: | LONGYUE |
| Certification: | ISO9001, CE |
| Model Number: | LCB-1FD |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 100 set / month |
| Airflow Direction: | Vertical | Clean Level: | Class 100@≥0.5um（U.S.Federal 209E） |
|---|---|---|---|
| Wind Speed: | 0.3~0.6m/s（Recommended Speed: 0.5m/s） | Colony Count: | ≤0.5/vessel（Petri Dish: φ90mm ） |
| Noise Level: | ≤62dB（A） | Power Supply: | AC220V/50Hz |
| Illumination Intensity: | ≥300Lx | Vibration Semi-Peak Value: | ≤3um |
| Maximum Power: | 0.4Kw | Interior Size(W*D*H)cm: | 87*70*52 |
| Exterior Size (W*D*H)cm: | 99*72*166 | HEPA Filte: | 820×600×50 One Pc |
| High Light: | vertical air flow clean bench,horizontal laminar flow cabinet |
||

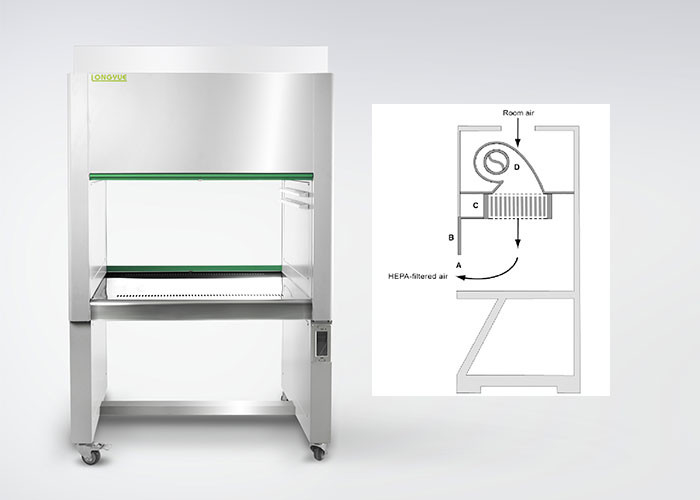

High Quality Clean Bench Vertical Laminar Air Flow Cabinet
Cleaning Steps:
Clean the ceiling of the unit first.
Clean the back wall (of a vertical laminar flow hood) next, going from top to bottom.
Clean the sides (swiping from top to bottom in overlapping lines).
The work surface should be the last surface cleaned, beginning in the back and ending at the front of the unit.
Features:
☆ Vertical type, special designed table top, effectively prevent the external air into the cleaning work chamber and ensure the safety of the operator.
☆ Stainless steel board, Large LCD screen to display air flow, working time, pressure difference, working status, etc.
☆ High efficient ironclad centrifugal fan with the features of stable work and low noise.☆ Spring-type sliding door, can be positioned freely within the specified range.
Specifications
| Model |
LCB-1F LCB-1FD |
LCB-2F LCB-2FD |
LCB-1300VU |
| Applicable Station | 1F:one person two side 1FD:one person one side |
2F:two person two sides 2FD:two person one side |
two person one side
|
| Airflow Direction | Vertical | ||
| Clean Level | Class 100@≥0.5um(U.S.Federal 209E) | ||
| Wind speed | 0.3~0.6m/s(Recommended speed: 0.5m/s) | ||
| Colony Count | ≤0.5/vessel(Petri dish: φ90mm ) | ||
| Noise Level | ≤62dB(A) | ||
| Power Supply | AC220V/50Hz | ||
| Illumination Intensity | ≥300Lx | ||
| Vibration Semi-Peak Value | ≤3um | ≤5um | ≤4um |
| Maximum Power | 0.4Kw | 0.8Kw | 0.8Kw |
| N.W. / G. W.(Kg) | 80/130 | 130/210 | 130/210 |
| Interior Size(W*D*H)cm | 87*70*52 | 136*70*52 | 112*65*72 |
| Exterior Size (W*D*H)cm | 99*72*166 | 148*72*166 | 136*80*180 |
| Package Size (W*D*H)cm | 114×86×186 | 164×86×186 | 144×94×191 |
| HEPA Filter | 820×600×50 one pc | 1310×600×50 one pc | 610×610×50 two pcs |
| Fluorescent lamp | 20W*1 | 20W*2 | 30W*1 |
| UV lamp | 20W*1 | 20W*2 | 30W*1 |
