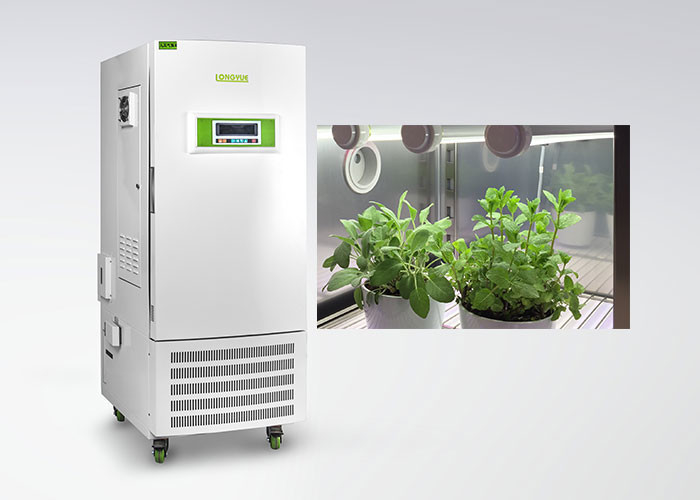

475L Plant Growth Cabinet Illumination Incubator Double Door Design

475L Plant Growth Cabinet Illumination Incubator Double Door Design

  • 475L Plant Growth Cabinet Illumination Incubator Double Door Design
475L Plant Growth Cabinet Illumination Incubator Double Door Design
Product Details:
Place of Origin: China
Brand Name: LONGYUE
Certification: ISO9001, CE
Model Number: LB-475-N
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden case
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 100 set / month
Contact Now
Detailed Product Description
Capacity (L): 475 Temp.Range: With Light:10~55℃ Without Light:0~55℃
Temperature Fluctuation: ±1℃ Display Resolution: 0.1℃
Temperature Uniformity: ±1℃ Iight Intensity(LX: 0~30000
Chamber Size(W×D×H)cm: 70*55*125 Exterior Size(W×D×H)cm: 86*75*182
Shelf (Standard/Max.): 3/22
High Light:

plant incubator growth chamber

,

climatic test chamber

Plant Growth Chamber Climate Chamber Illumination Incubator



Plant growth chambers are special type of environmental test chambers which are designed to perform plant growth experiments inside laboratory. The aim of a plant growth chamber is to create such atmospheric conditions responsible for effective plant germination and growth. In such chambers or cabinets, humidity, temperature and lights are controlled in such a way that you can create desired environment essential for examining growth of a particular plant.



Features:

★ Adopt imported fluorine-free compressor, environment friendly and reliable.

★ Adopt imported brand humidity sensor, with self-designed built-in water tank and electric heating humidifying system, ensuring high accuracy for humidity.

★Double door design, the inner door is made of tempered glass, can directly observe the culture in the working chamber. the outer door is magnetically sealed.

★Large LCD touch screen to display multiple parameters at same time , menu interface, enjoyable operation.

★Adopt mirror stainless steel inner tank, shelves inside the chambers can be freely adjustable without tool, convenient for disinfection and cleaning.

★The left bottom side is equipped with detachable water level sensor to control the humidifying of tank, which is convenient for operators to check and repair.

★Lights from 3 side and 6 levels can be adjusted.



Intelligent Control

★ It can simulate the temperature changes of nature during the day and night and the multi-directional nature light.

★The parameters set by the user can be automatically stored in case of power cut, it will run the original setting program after power restored.

★Automatically control for circulating wind speed to avoid plant blowing by strong wind duringtest.



◆ Multi-segment program Control

★The temperature, humidity, illuminance, time and heating rate are controlled by multi-segment program, which simplifies the complicated test process and realizes automatic control and operation.



Self-diagnosis function

★ When the climate chamber fails, the fault information will display on LCD screen, easy for check.



Safety function

★ Independent temperature limit alarm system, giving sound and visual alarm to prompt operator, ensuring safe operation of equipment.

★ Alarm for high or low temperature.

★ Equipped with leakage protection

★ Equipped with spare temperature control which ensures the product work normally even the main temperature control failed(for heating).

★ Data control system (optional)

★ Optional RS485 or USB interface and software.

★ With data logging, data communication, and failure analysis function.

★ Optional printer for data recording and print, compliance with GMP standards.



Optional Wireless alarm system (SMS alarm system)

★ When the device fails and operator is not in the field, the system will automatically collect the fault signal and send a message to the receiver's mobile phone in first time to ensure timely troubleshooting and resume testing.



Options:

1. RS485/232 connector and software

2. Wireless alarm system (SMS alarm system)

3. CO2 inlet (promoting plant growth)

4. CO2 controller (imported infrared CO2 sensor) ,CO2 Range:0~10%,0-3000ppm

5. Remote control system



Specifications

Model LAC-175-N LAC-275-N LAC-375-N LAC-475-N LAC-1075-N
Chamber Volume(L) 175 275 375 475 1075
Temperature range (℃) With light:10~55℃ Without light:0~55℃
Temperature Stability ±1℃
Display Resolution 0.1℃
Temperature Uniformity ±1℃
Humidity Range 30~95%RH
Humidity Deviation ±3RH
Iight Intensity 0~12000LX 0~20000LX 0~25000LX 0~30000LX 0~30000LX
Program Control Separately set for temperature and light, can set 30-segment program, each section can be set from 1 to 99 hours.
Power Rating 860W 1700W 2100W 4000W 5000W
Power Supply AC220V, 50HZ
Ambient Temperature +5~35℃
Working Long continuous operation
Chamber Size(W×D×H)cm 45*42*93 58*51*93.5 59*55*116 70*55*125 95*70*160
Exterior Size(W×D×H)cm 61*62*150 74*71*157 75*75*173 86*75*182 101*90*224
Shelf(Standard) 3pcs
