3L Colorful Touch Screen Laboratory Rotary Evaporator

3L Colorful Touch Screen Laboratory Rotary Evaporator

  • 3L Colorful Touch Screen Laboratory Rotary Evaporator
3L Colorful Touch Screen Laboratory Rotary Evaporator
Product Details:
Place of Origin: China
Brand Name: LONGYUE
Certification: CE ISO
Model Number: VRT-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Carton
Delivery Time: 7 workding days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500sets/Month
Contact Now
Detailed Product Description
Bath Volume: 3L Lift: 150mm
Temp. Range: RT.~210℃ Rotating Speed: Max. 310rpm/min
Lowest Speed: 20rpm/min Vacuum Control: Built-in
Condenser: Vertical Cond. Area: 1800cm²
Over Temp. Alarm: Yes Temp. Requested: 5℃--40℃
Positive&Negative Rotating: Yes Positive&Negative Rotating Timer: Yes
High Light:

Touch Screen Laboratory Rotary Evaporator


Colorful Laboratory Rotary Evaporator


3L Laboratory Rotary Evaporator

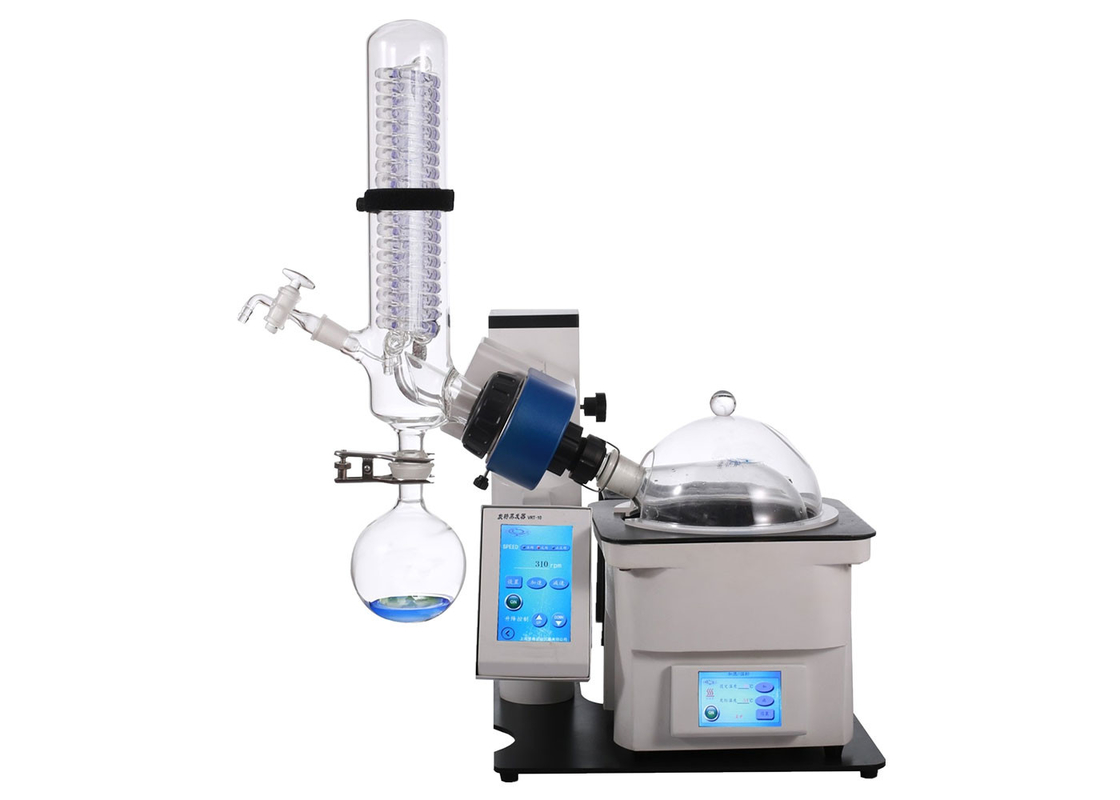

VRT-10 Colorful Touch Screen Laboratory Rotaty Evaporator


  1. Big color touch screen with menu interface displaying several data.
  2. Data storage for the commonly used experiments, which makes flash distillation started with a button-press.
  3. Heating bath with Teflon coating, which is easy to clean, anti-corrosive and high temperature resistant as well.
  4. Unattended mode with safe operation function, which is in automatic standby mode after the experiment.
  5. Special design of bottle pulling switch, which is easy to disassemble the evaporation flask.
  6. Built-in vacuum control system which is easy and quick to operate.
  7. Automatic lifting with safety stop and timing function.
  8. Equipped with RS485/USB and infrared ray interface.
  9. Vertical conde.
  10. Vertical condenser with drip point design, which prevents backflow.
  11. Integral glass spindle, which makes steady startup and positive and negative rotating available.
  12. Anti-dry protection with over temperature alarm and automatic standby function.
  13. Safety handle design on heating bath prevents scald.
  14. Sealing is made up of imported PTFE with special technique.
  15. Compact structure design, which saves a lot space.
Technical Parameter:
Bath Volume 3L   Vacuum control Built-in
Lift 150mm Motor Power 60W
Temp. range RT.~210℃ Condenser Vertical
Temp. Control Touch screen; PID Control Cond. Area 1800cm²
Temp. Precision ±1℃ Positive&Negative Rotating Yes
Size(LWH) 600*330*720mm Safety Degree IP 20
Voltage AC220V/AC110V Interface RS485/USB/infrared ray interface
Frequency 50/60Hz Over Temp. Alarm Yes
Total Power 1400W Rotating Speed Max. 310rpm/min
Weight 16kg Humidity Requested ≤80%
Heating Power 1300W Temp. Requested 5℃--40℃
Lowest Speed 20rpm/min Positive&Negative Rotating timer Yes
Host DC Motor
