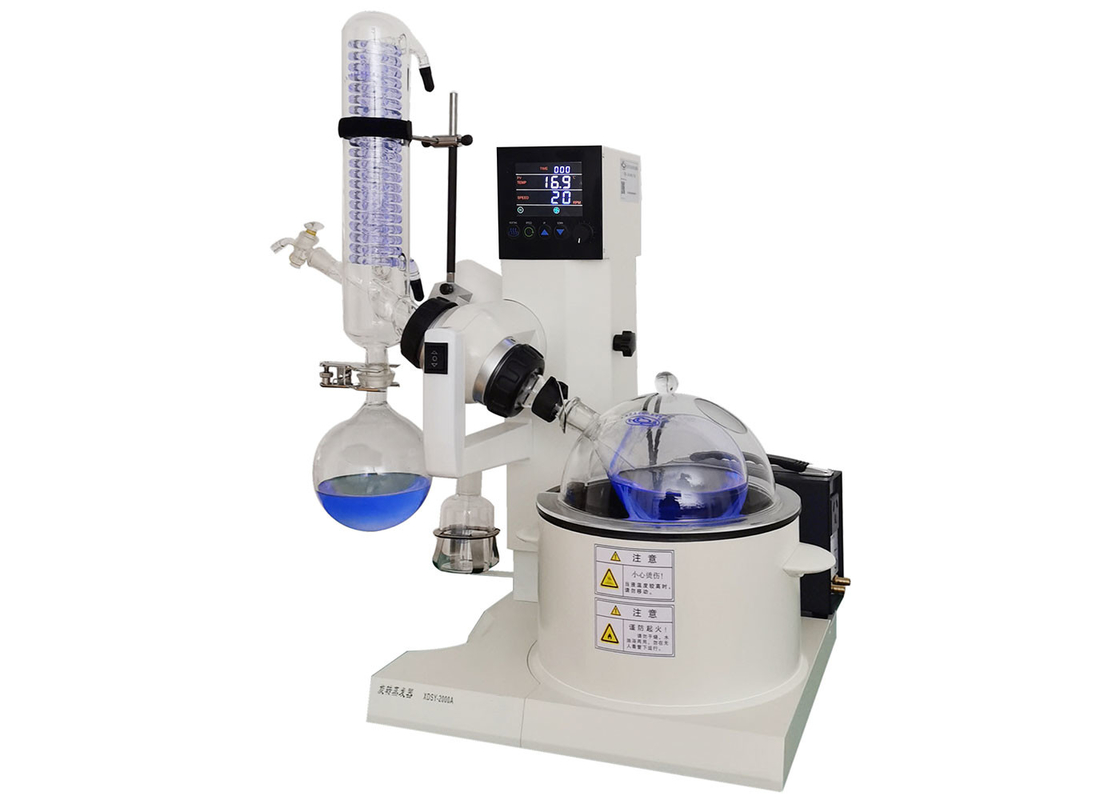

310rpm/Min 2L LCD Display Laboratory Rotary Evaporator

310rpm/Min 2L LCD Display Laboratory Rotary Evaporator

  • 310rpm/Min 2L LCD Display Laboratory Rotary Evaporator
310rpm/Min 2L LCD Display Laboratory Rotary Evaporator
Product Details:
Place of Origin: China
Brand Name: LONGYUE
Certification: CE ISO
Model Number: XDSY-2000A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Carton
Delivery Time: 7 workding days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500sets/month
Contact Now
Detailed Product Description
Rotating Speed: Color LCD Screen; 0~310rpm/min Evap. Capacity: Max.25ml/min (H2O)
Temp. Range/precision: Microcomputer PID Controller; Water Bath:RT.-99℃±0.5℃;Oil Bath:RT.-210℃±2℃ Bath Material: Integral Teflon Compound Heating Bath With Safe Handle, Which Prevents From Scald; The Medium Sized Bath Volume Makes Distillation Fast.
Bath Size: φ23×13cm Positive&Negative Rotating: Intermittent Positive And Negative Rotating Function With Timing Function (0-60s) For Drying Process.
Lift: Automatic Balance Lifting Which Can Be Controlled By Either Button-press Or Color LCD Screen; The Lifting Length Is 150mm, With Fixed Safety Distance Of 60mm, Which Prevents Crashing. Temp. Set: Rotating Switch Coding For Temperature Setting With Big LCD Screen Display.
Flask Volume: 0.25--2L Condense Area: 0.18㎡
High Light:

LCD Display Laboratory Rotary Evaporator

,

2L Laboratory Rotary Evaporator

,

310rpm/Min Rotary Evaporator

XDSY-2000A LCD Display Laboratory Rotaty Evaporator 2L

Features:

  1. Big color LCD screen with menu interface displaying several data; rotary switch easy to operate.
  2. Heating bath with Teflon coating, which is easy to clean, anti-corrosive and high temperature resistant as well.
  3. Unattended mode with safe operation function, which is in automatic standby mode after the experiment.
  4. Special design of bottle pulling switch, which is easy to disassemble the evaporation flask.
  5. Vacuum protection design which prevents vapor from vacuum pump, so the vacuum pump is more durable.
  6. Sealing made up of imported PTFE with special technique.
  7. Both touch screen control and button press type automatic lifting function.
  8. DC rotating motor of 70w power starts steadily.
  9. Vertical condenser with drip point design prevents backflow.
  10. Intermittent positive and negative rotating function with timer function for drying process.
  11. Oil and water heating bath with safe handle, whose temperature range is from room temperature to 210℃.
  12. Anti-dry auto-lifting and automatic standby function.

Technical Parameter:

Model #
XDSY-2000A
XDSY-3000A
XDSY-5000A
Rotating Speed
Color LCD Screen; 0~310rpm/min
Color LCD Screen; 0~200rpm/min
Evap. Capacity
Max.25ml/min (H2O)
Max.27ml/min (H2O)
Max.43ml/min (H2O)
Temp. range/precision
Microcomputer PID controller; Water Bath:RT.-99℃±0.5℃;Oil Bath:RT.-210℃±2℃
Bath Material
Integral Teflon compound heating bath with safe handle, which prevents from scald; the medium sized bath volume makes distillation fast.
Bath Size
φ23×13cm
φ26×15cm
φ29×17cm
Positive&Negative Rotating
Intermittent positive and negative rotating function with timing function (0-60s) for drying process.
Lift
Automatic balance lifting which can be controlled by either button-press or Color LCD screen; the lifting length is 150mm, with fixed safety distance of 60mm, which prevents crashing.
Temp. Set
Rotating switch coding for temperature setting with big LCD screen display.
Safety
Anti-dry prevention function which makes flask automatic lifting; instrument will stop at the set timing (0-999min); automatic lifting and standby alarm protection in abnormal or over temperature state.
Heater Power
1.5KW
1.5KW
1.8KW
Flask Volume
0.25--2L
0.25--3L
0.25--5L
Sealing
Imported PTFE and special complex compounded with special technique, which ensures good sealing and improves the anti-corrosion and durability property.
Condenser
Vertical 3-layered coil condenser with big condensation area, equipped with drip point and backflow prevention, which effectively increases the evaporation efficiency.
Condense Area
0.18㎡
0.21㎡
0.31㎡
Environment Temp.
5℃~40℃
Factory Configuration
29#Eggplant Shaped Flask1L*1
29# Flange mouth Round Bottom Flask 2L*1
S35Ball mill mouth Receiving Flask 1L*1
29#Eggplant Shaped Flask1L *1
F50Flange mouth Round Bottom Flask3L*1
S35Ball mill mouth Receiving Flask 2L*1
29#Eggplant Shaped Flask1L *1
F50Flange mouth Round Bottom Flask5L*1
S35Ball mill mouth Receiving Flask:3L*1
Input
AC220V/50HZ

Size&Weight
Pack Size 71×64.5×51cm/
Product Size 66×42×83cm/
G/W 30KG
Pack Size 71×64.5×79cm/ Product Size 70×43×86cm/
G/W 35KG
Pack Size 78×69×85cm/
Product Size 74×44×96cm/
G/W 42KG
Optional:Vacuum controller for precise vacuum control.
Warning: The protection cap is only for water bath experiment. Please do not use in oil bath experiment.
