300L RS485 LCD Display Battery Stability Test Chamber

300L RS485 LCD Display Battery Stability Test Chamber

  • 300L RS485 LCD Display Battery Stability Test Chamber
  • 300L RS485 LCD Display Battery Stability Test Chamber
300L RS485 LCD Display Battery Stability Test Chamber
Product Details:
Place of Origin: China
Brand Name: LONGYUE
Certification: ISO9001
Model Number: LBI-HT
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden case
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 100 set / month
Contact Now
Detailed Product Description
High Light:

LCD Display Battery Test Chamber

,

RS485 Battery Test Chamber

,

300L Battery Test Chamber



Battery Test Chamber



Imported compressor, automatic control for hot and cold.

Microprocessor temperature control with large LCD display, high precision.

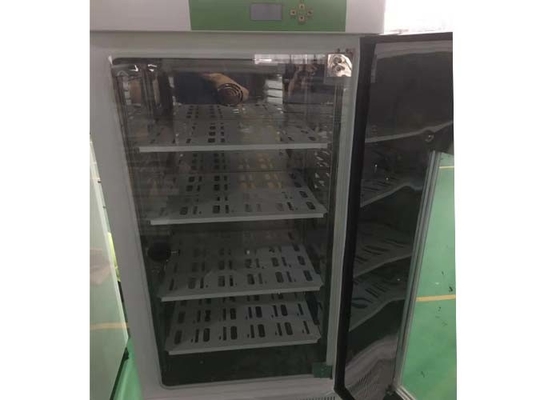

Polished stainless steel chamber, moveable shelves can be freely adjusted,
easy for cleaning.
Equipped with power supply outlet and lamp inside, easy observation.
The chamber equipped with fan for forced convection.
The surface coated, good appearance and maintenance.
Double door design, the inner door is made of tempered glass for easy
observation,magnetic sealing design for outer door, good sealing.
Equipped with leakage protection.
Equipped with spare temperature control which ensures the product work
normally even the main temperature control failed(for heating).



RS485 connector to connect computer and printer, temperature and time
data can be displayed on computer and print.
Equipped with 10cm testing hole for convenience







Specifications





Model    LBI-80HT   LBI-300HT
Chamber Volume 80L 300L
Temperature Range 0~60 ℃
Display Resolution 0.1 ℃
Temperature Stability Heating:±0.5℃;Cooling:±1℃
Temperature Uniformity ±1℃
Timing Range 1~9999min
Power Rating(W) 180 400
Refrigerant R134a
Power Supply 220±10%V , 50Hz
Continuous Operation Long continuous operation
Chamber Size(W×D×H)cm

40×37×55



52×50×117
Exterior Size(W×D×H)cm

54×57×107



66×69×169



Package Size (W×D×H)cm

70×73×126



82×85×188
Net/Gross Weight(Kg)

50/85



115/157
