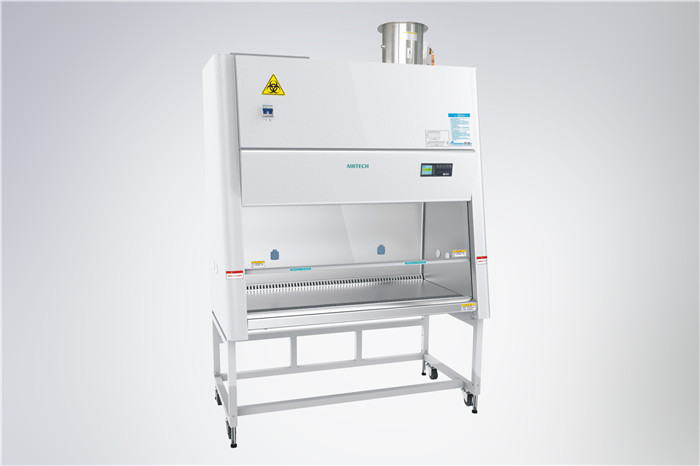

0.55m/S Inflow ULPA Filtration 4' Biosafety Cabinet

0.55m/S Inflow ULPA Filtration 4' Biosafety Cabinet

  • 0.55m/S Inflow ULPA Filtration 4' Biosafety Cabinet
0.55m/S Inflow ULPA Filtration 4' Biosafety Cabinet
Product Details:
Place of Origin: China
Brand Name: LONGYUE
Certification: ISO CE
Model Number: BSC-1304IIB2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: wooden carton
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Nominal Size: 1.3meter(4') Filtration Efficiency: ULPA: ≥99.9995%, @0.12μm
Downflow Velocity: 0.35 M/s(68.88fpm) Inflow Velocity: 0.55 M/s(108.24fpm)
Vibration(μm): ≤5 μm(center Of Tabletop) Opening Height(mm): 200 Mm
Operator Protection: A. Total Colony In Impaction Sampler ≤10CFU./time B. Total Colony In Impaction Sampler ≤5CFU./time Product Protection: Total Colony In Culture Dish ≤5CFU./time
Cross Contamination: Total Colony In Culture Dish ≤2CFU./time Work Dimension (W1XD1XH1): 1304*630*630 Mm
Overall Dimension: 1500*795*2050 Mm Size And Qty. Of Light: LED 31 W X ①
Size And Qty. Of UV Light: 30 W X ① Lumin.: ≥900 Lx
Working Area Materials: SS304 Fully Finished Air Direction: Top Out
High Light:

4' Biosafety Cabinet

,

ULPA Filtration Biosafety Cabinet

,

0.55m/s Biosafety Cabinet

Description



Friendly Control Panel

◆ Color LED screen, show the air velocity, time, fan station, HEPA filter life and alarm in real time.



Safe and Reliable, Energy-Efficient

◆ DC fan and LED light make the operation power consumption save 30%.

◆ Intelligent auto-supply system of imported blower ensures the change of air volume less than 10% when the resistance of filter increases 50% and enhance safety.

◆ The alarm system for safe operation height is interlocked with light. At the same time light is

Interlocked with sterilizing.

◆ Leak detection in cabinet, no leakage at 500Pa.

◆ UV light with set timer, safer and high efficiency.



Humanized design

◆ 10°sloped front make it comfortable to operator.

◆ Negative pressure and double layers chamber around ensure non-leakage, non-pollution.

◆ Demountable circular-arc armrest can alleviate working tiredness and make it easy to transport.

◆ Front window adopts hanging lifting system (Imported from Japan) and more than 5mm thickness security glass with arbitrary positioning, high stability and convenient to sterilization when it closed. (Patent No.: ZL97235425.5)

◆ Front window can be cleaned all-over, solving the problem which front window can’t be cleaned inside

◆ Moveable working table with handle and support make it easier to clean collecting tank.

◆ There are two anti-splash spare sockets and four service port in the cabinet.

◆ Movable stainless steel worktable 4 liter capacity stainless steel collecting tank with below down valve, easy to collect water, cleaning and disinfection.

◆ Non-obstructive air return mode in the front suction channel (Patent No.: ZL200520140353.8).

◆ The adjustable leveling foot is without exposure thread.



ULPA filters

◆ USA HV ULPA Filter Medium, provide 99.9995% typical efficiency for particle size over 0.12 microns, and the materials is glass fiber.

◆ A minimum ISO 4 air quality in the work area

◆ Patent of non leakage

◆ Every ULPA filters will be tested to ensure non leakage.



ECO mode and power off memory function

◆ You need not to turn off BSC when stop experiment. You can close front window and BSC will turn to ECO mode to ensure cleanliness in working area. If opening front window, BSC will turn to normal mode immediately.

◆ If losing power unexpected, BSC will return to the station which before losing power when regain power. This will ensure the safety of operator.







Model/Item BSC-1004IIB2 BSC-1304IIB2 BSC-1604IIB2 BSC-1804IIB2
Nominal Size 1 meter(3') 1.3meter(4') 1.6meter(5') 1.8meter(6')
Filtration Efficiency ULPA: ≥99.9995%, @0.12μm
Downflow Velocity 0.35 m/s(68.88fpm)
Inflow Velocity 0.55m/s(108.24fpm)
Noise 58~65 dB(A)
Vibration ≤5 μm(center of tabletop)
Power Supply AC220V,1φ,50Hz
Opening Height 200 mm
Personnel Protection

A. Total colony in impaction sampler ≤10CFU./time

B. Total colony in impaction sampler ≤5CFU./time

Product Protection Total colony in culture dish ≤5CFU./time
Cross-contamination Protection Total colony in culture dish ≤2CFU./time
Max Consumption(with spare socket) 1.65 kVA 1.75 kVA 1.75 kVA 1.75 kVA
Rated Power(without spare socket) 0.33 kVA 0.43 kVA 0.43 kVA 0.43 kVA
Weight 270 kg 310 kg 370 kg 410 kg



Work Dimension

(W1XD1XH1)



1004*630*630 mm

(39.5''x24.8''x24.8'')

1304*630*630 mm

(51.3''x24.8''x24.8'')

1604*630*630 mm

(63.1''x24.8''x24.8'')

1804*630*630 mm

(71.0''x24.8''x24.8'')



Overall Dimension

(WXDXH)



1200*795*2050 mm

(47.2''x31.3''x80.7'')

1500*795*2050 mm

(59.1''x31.3''x80.7'')

1800*795*2050 mm

(70.9''x31.3''x80.7'')

2000*795*2050 mm

(78.7''x31.3''x80.7'')



Size and Qty. of

Light



LED 24.5 w x ① LED 31 w x ① LED 36 w x ① LED 36 w x ①



Size and Qty. of

UV Light



18 w x ① 30 w x ① 36 w x ① 36 w x ①
Lumin. ≥900 Lx
Cabinet Materials High-grade steel and lacquered in ivory
Working Area Materials SS304 fully finished
Air Direction Top out
Plug Style Chinese Type(AC 250V/10A)
Qty. of Sapre Socket Chinese Type(AC 250V/3A) 2 units
