| Place of Origin: | China |
| Brand Name: | LONGYUE |
| Certification: | ISO CE |
| Model Number: | BSC-1303IIA2 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden carton |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |
| Nominal Size: | 1.3meter(4') | Filtration Efficiency: | HEPA: ≥99.995%, @0.3μm / ULPA: ≥99.9995%, @0.12μm |
|---|---|---|---|
| Downflow Velocity: | 0.35 M/s(68.88fpm) | Inflow Velocity: | 0.55 M/s(108.24fpm) |
| Vibration(μm): | ≤5 μm(center Of Tabletop) | Opening Height(mm): | 200 Mm |
| Operator Protection: | A. Total Colony In Impaction Sampler ≤10CFU./time B. Total Colony In Impaction Sampler ≤5CFU./time | Product Protection: | Total Colony In Culture Dish ≤5CFU./time |
| Cross Contamination: | Total Colony In Culture Dish ≤2CFU./time | Work Dimension (W1XD1XH1): | 1270*600*620 Mm |
| Overall Dimension: | 1500*790*2050 Mm | Size And Qty. Of Light: | LED 31 W X ① |
| Size And Qty. Of UV Light: | 30 W X ① | Lumin.: | ≥750 Lx |
| Working Area Materials: | SS304 Fully Finished | Air Direction: | Top Out |
| High Light: | SS304 Biosafety Cabinet,200mm Biosafety Cabinet,LED Screen Biosafety Cabinet |
||

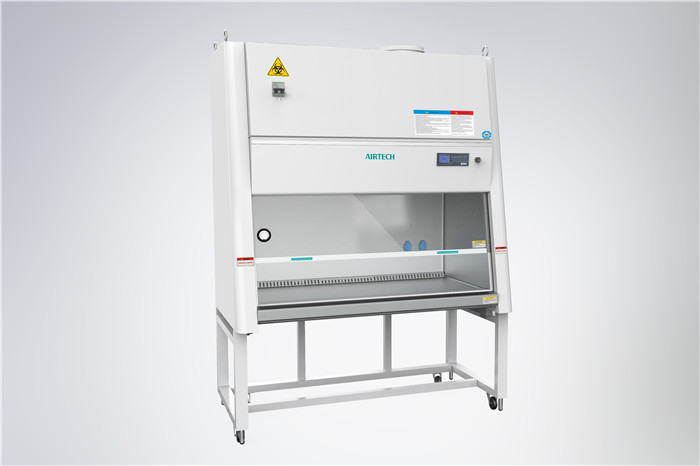

BSC-1003/1303/1603IIA2 Biosafety Cabinet (BSC-03IIA2)
Description
Friendly Control Panel
◆ LED screen, show the air velocity, time, fan station, alarm in real time.
Safe and Reliable, Energy-Efficient
◆ DC fan and LED light make the operation power consumption save 30%.
◆ Intelligent auto-supply system of imported blower ensures the change of air volume less than 10% when the resistance of filter increases 50% and enhance safety.
◆ The electrical parts are certified by VDE and spare sockets are accord with European standard.
◆ The alarm system for safe operation height is interlocked with light.
◆ Leak detection in cabinet, no leakage at 500Pa.
Humanized design
◆ There is key for power switch, so you can make management for operators.
◆ 10°sloped front make it comfortable to operator.
◆ Negative pressure and double layers chamber around ensure non-leakage, non-pollution.
Demountable circular-arc armrest can alleviate working tiredness and make it easy to transport.
◆ Front window adopts hanging lifting system (Imported from Japan) and more than 5mm thickness security glass with arbitrary positioning, high stability and convenient to sterilization when it closed. (Patent No.: ZL97235425.5)
◆ There are two anti-splash spare sockets in the cabinet.
◆ Movable stainless steel worktable 4 liter capacity stainless steel collecting tank with below down valve, easy to collect water, cleaning and disinfection.
◆ Non-obstructive air return mode in the front suction channel (Patent No.: ZL200520140353.8).
◆ The adjustable leveling foot is without exposure thread.
HEPA filters
◆ USA HV HEPA Filter Medium, provide 99.995% typical efficiency for particle size over 0.3 microns, and the materials is glass fiber.
◆ A minimum ISO 5 air quality in the work area
◆ Patent of non leakage.
◆ H14 HEPA filters are accord with EN13091:1999 and EN 1822-1 standard. Every HEPA filters will be tested to ensure non leakage.
| Model/Item | BSC-1003IIA2 | BSC-1303IIA2 | BSC-1603IIA2 |
| Nominal Size | 1meter(3') | 1.3meter(4') | 1.6meter(5') |
| Filtration Efficiency | HEPA: ≥99.995%, @0.3μm / ULPA: ≥99.9995%, @0.12μm | ||
| Downflow Velocity | 0.35 m/s(68.88fpm) | ||
| Inflow Velocity | 0.55 m/s(108.24fpm) | ||
| Noise | ≤65 dB(A) | ||
| Vibration | ≤5 μm(center of tabletop) | ||
| Power Supply | AC220~240V,1φ,50/60Hz | ||
| Opening Height | 200 mm | ||
| Operator Protection |
A. Total colony in impaction sampler ≤10CFU./time B. Total colony in impaction sampler ≤5CFU./time |
||
| Product Protection | Total colony in culture dish ≤5CFU./time | ||
| Cross Contamination | Total colony in culture dish ≤2CFU./time | ||
|
Max Consumption (with spare socket) |
1.5 kVA | 1.5 kVA | 1.8 kVA |
|
Rated Power (without spare socket) |
0.5 kvA | 0.54 kVA | 0.75 kVA |
| Weight | 280 kg | 300 kg | 320 kg |
|
Work Dimension (W1XD1XH1) |
970*600*620 mm (38.2''x23.6''x24.4'')
|
1270*600*620 mm (50''x23.6''x24.4'') |
1570*600*620 mm (61.8''x23.6''x24.4'') |
|
Overall Dimension (WXDXH)
|
1200*790*2050 mm (47.2''x31.1''x80.7'') |
1500*790*2050 mm (59.1''x31.1''x80.7'') |
1800*790*2050 mm (70.9''x31.1''x80.7'') |
| Size (W) and Qty. of Light | LED 24.5 w x ① | LED 31 w x ① | LED 36 w x ① |
| Size (W) and Qty. of Light on-duty | 18 w x ① | 30 w x ① | 36 w x ① |
| Lumin. | ≥750 Lx | ||
| Cabinet Materials | High-grade steel and lacquered in ivory | ||
| Working Area Materials | SS304 fully finished | ||
| Air Direction | Top out | ||
| Plug Style | Europe Type(AC 250V/10A) | ||
| Qty. of Spare Socket | Europe Type(AC 250V/2A) 2 units | ||
